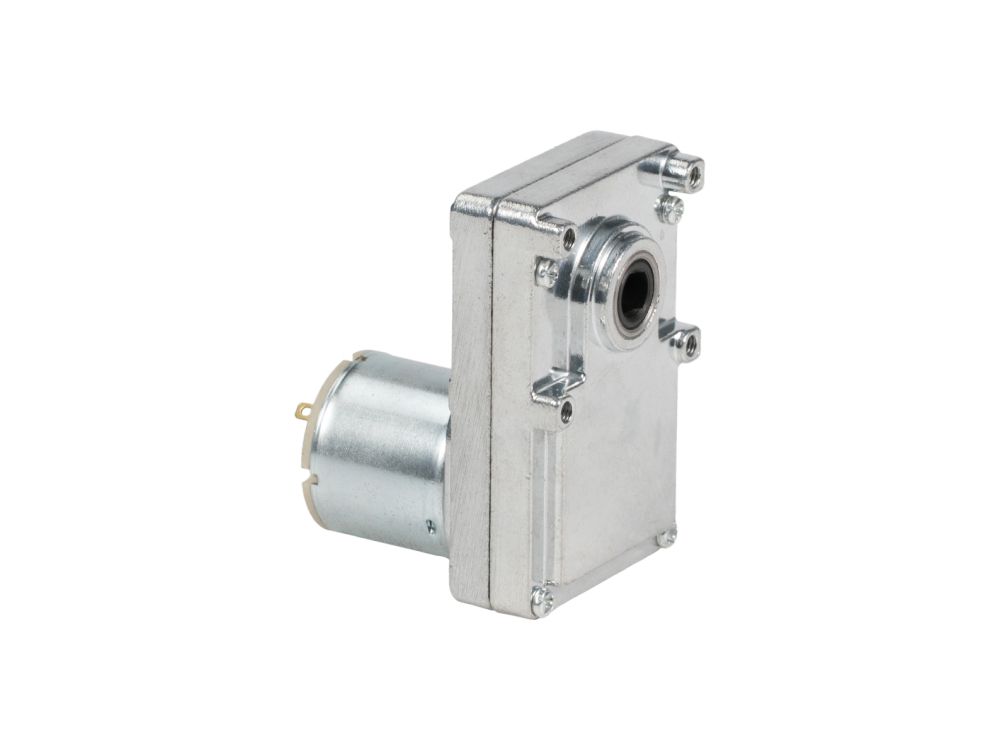

AF528 DC Gearmotors - Flat

USD 13.98 MSRP

Key Data

Gearbox Weight: 302 g
Rated Voltage: 12 V
Rated Speed: 285 rpm
Rated Torque: 485 gf·cm
Rated Power: 1416 W

Motor Options4 variants

DC528 12V 4500 RPM

Gearbox Options8 variants

AF 13.6:1

Request customization

Model & Specification Comparison

Motors 4 options

52812450 DC528 12V 4500 RPM In stock 99

Gearboxes 8 options

AF1360 AF 13.6:1 In stock 99

Product specifications
Product Model	AF528124500-
Gearbox Weight	302 g
Rated Voltage	12 V
No Load Speed	330.882353 rpm
Rated Speed	285 rpm
No Load Current	80 mA
Rated Current	230 mA
Stall Current	1,360 mA
Rated Torque	485 gf·cm
Stall Torque	3613.248 gf·cm
Rated Power	1416 W
Max Efficiency	58.320 %
Gearbox Length	102.1 mm
Gear Ratio	13.6 :1
Number Of Gear Stages	3
Max Continuous Torque	3 gf·cm
Instantaneous Break Torque	9 gf·cm
Backlash	3 °
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	300 hours
