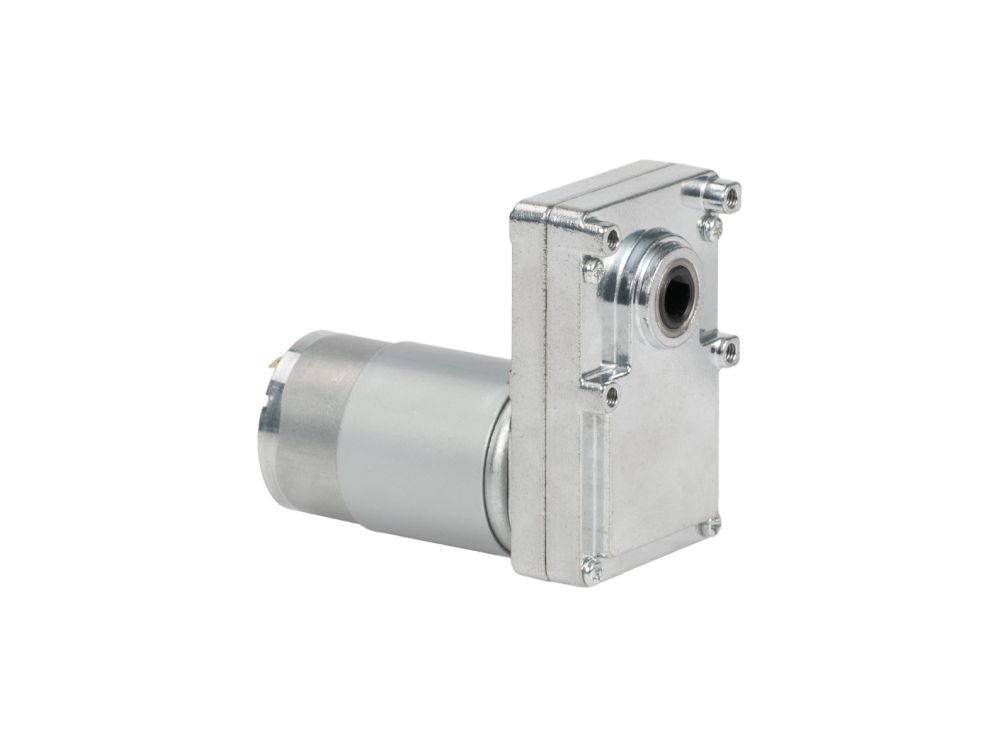

AF555 DC Gearmotors - Flat

USD 14.58 MSRP

Key Data

Gearbox Weight: 461 g
Rated Voltage: 12 V
Rated Speed: 191 rpm
Rated Torque: 1972 gf·cm
Rated Power: 3870 W

Motor Options6 variants

DC555 12V 3000 RPM

Gearbox Options8 variants

AF 13.6:1

Request customization

Model & Specification Comparison

Motors 6 options

55512300 DC555 12V 3000 RPM In stock 99

Gearboxes 8 options

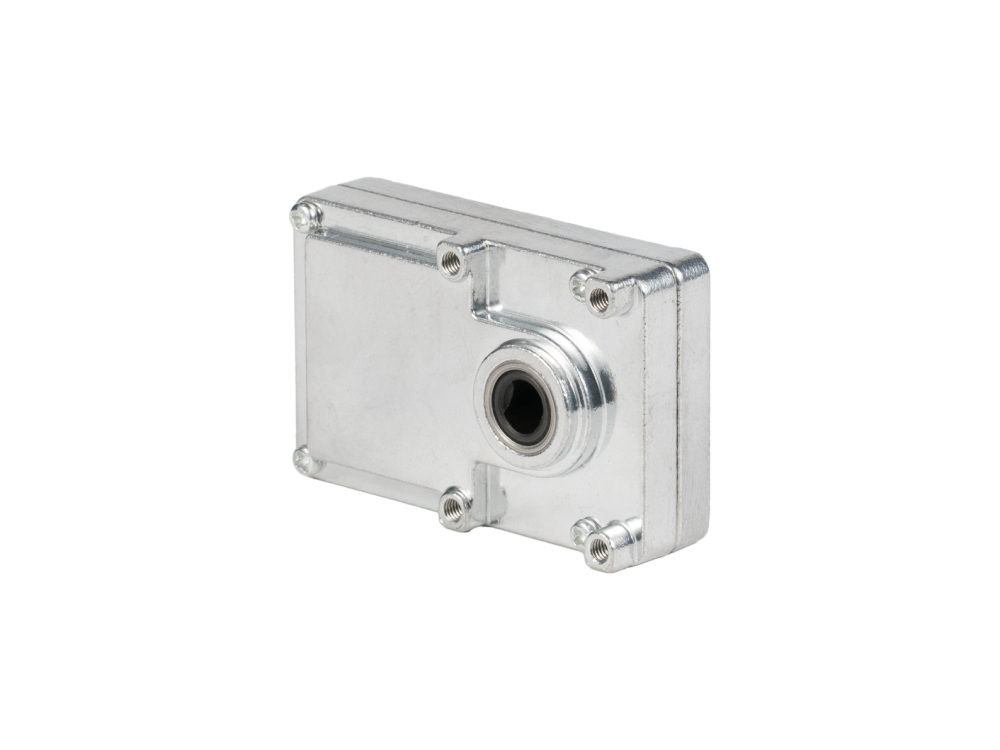

AF1360 AF 13.6:1 In stock 99

Product specifications
Product Model	AF555123000-
Gearbox Weight	461 g
Rated Voltage	12 V
No Load Speed	220.588235 rpm
Rated Speed	191 rpm
No Load Current	180 mA
Rated Current	600 mA
Stall Current	3,100 mA
Rated Torque	1972 gf·cm
Stall Torque	18176.4 gf·cm
Rated Power	3870 W
Max Efficiency	58.320 %
Gearbox Length	130 mm
Gear Ratio	13.6 :1
Number Of Gear Stages	3
Max Continuous Torque	3 gf·cm
Instantaneous Break Torque	9 gf·cm
Backlash	3 °
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	600 hours
