Motors
BLDC Motors
BL16

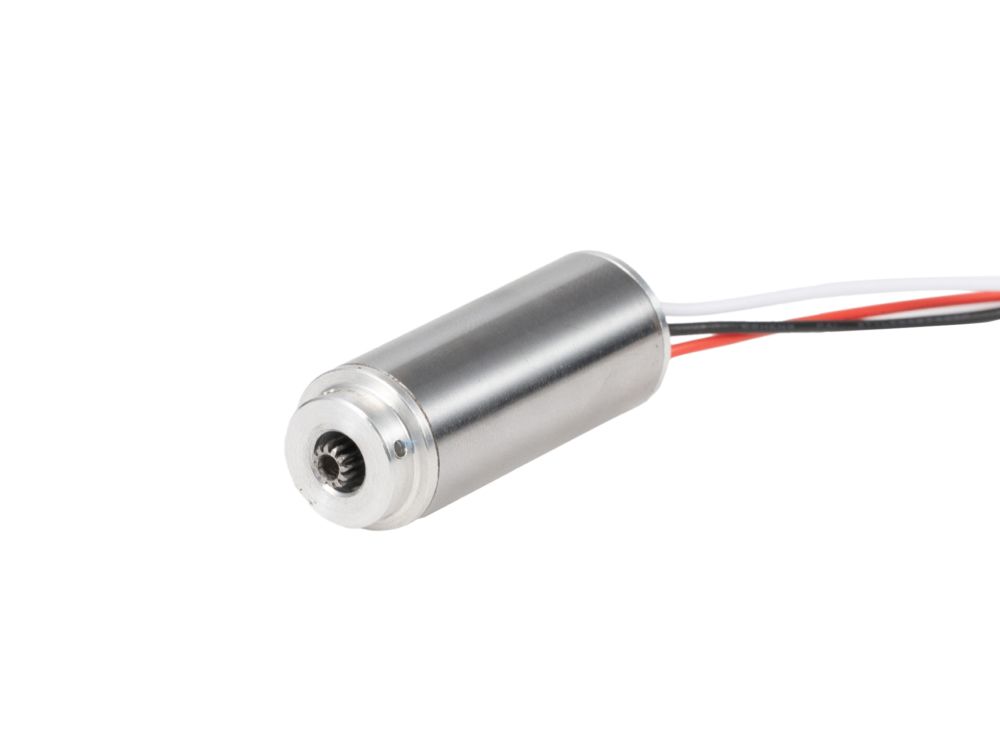

BL16 Brushless DC Motor
$16.99
MSRP
Key Data
Rated Voltage 12 V
Rated Torque 25 gf·cm
Rated Speed 8,000 rpm
Rated Current 400 mA
Rated Power 2 W
Electrical Options2 variants
BL16 12V 10000 RPM Request customization
Model & Selection Model & Selection
Model & Specification Comparison
SKU Motor Model Motor Type Rated Voltage No Load Speed Rated Speed No Load Current Rated Current Stall Current Rated Torque Stall Torque Rated Power Max Efficiency Motor Diameter Motor Length Motor Weight Shaft Configuration Working Lifespan Operating Temperature Range Housing Material Direction Of Rotation Number Of Pole Pairs Magnet Material Enameled Wire Material Insulation Class Hall Sensor Motor Control Gearbox
16121000 BL16-1210000 Brushless DC Motor 12 V 10,000 rpm 8,000 rpm 230 mA 400 mA 1,200 mA 25 gf·cm 60 gf·cm 2 W 82 % 16 mm 36.5 mm 31 g Single 3,000 hours -30 ~ 65 C 40 Cr Electronically reversible 8 Nd2Fe14B Enameled Copper Wire UEW No Sensorless external driver PG16 16121500 BL16-1215000 Brushless DC Motor 12 V 15,000 rpm 11,000 rpm 250 mA 550 mA 1,300 mA 27 gf·cm 70 gf·cm 3 W 82 % 16 mm 36.5 mm 31 g Single 3,000 hours -30 ~ 65 C 40 Cr Electronically reversible 8 Nd2Fe14B Enameled Copper Wire UEW No Sensorless external driver PG16
Technical Specifications Technical Specifications Motor Model BL16-1210000 Motor Type Brushless DC Motor Rated Voltage 12 V No Load Speed 10,000 rpm Rated Speed 8,000 rpm No Load Current 230 mA Rated Current 400 mA Stall Current 1,200 mA Rated Torque 25 gf·cm Stall Torque 60 gf·cm Rated Power 2 W Max Efficiency 82 % Motor Diameter 16 mm Motor Length 36.5 mm Motor Weight 31 g Shaft Configuration Single Working Lifespan 3,000 hours Operating Temperature Range -30 ~ 65 C Housing Material 40 Cr Direction Of Rotation Electronically reversible Number Of Pole Pairs 8 Magnet Material Nd2Fe14B Enameled Wire Material Enameled Copper Wire Insulation Class UEW Hall Sensor No Motor Control Sensorless external driver Gearbox PG16
