Motors
BLDC Motors
BL22

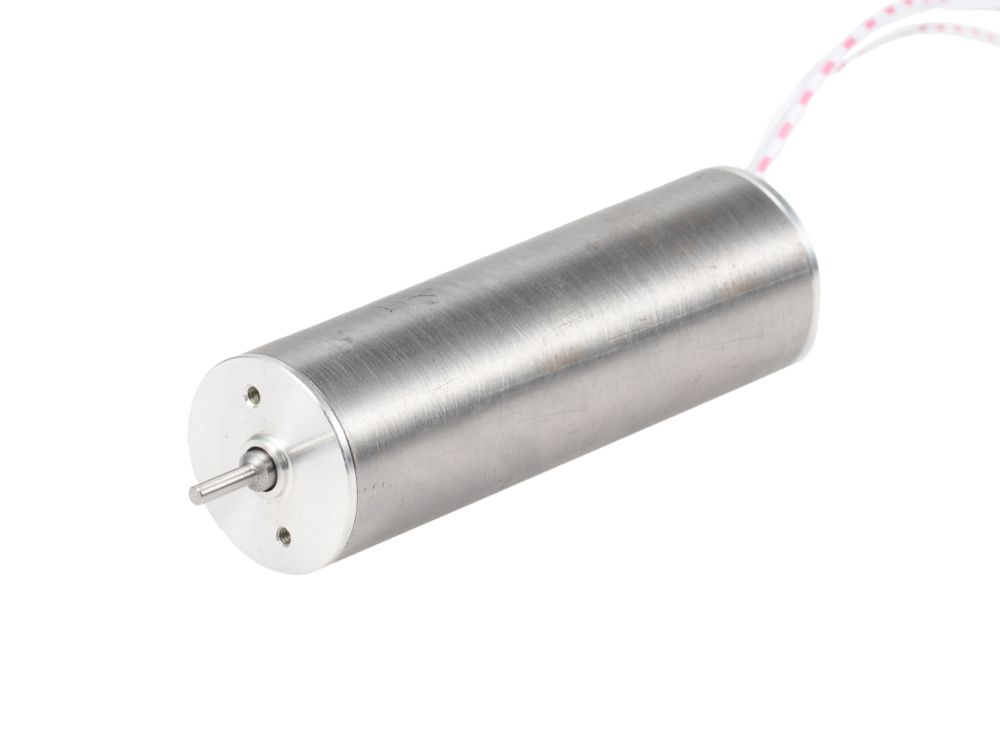

BL22 Brushless DC Motor
$16.99
MSRP
Key Data
Rated Voltage 12 V
Rated Torque 122 gf·cm
Rated Speed 5,000 rpm
Rated Current 900 mA
Rated Power 6 W
Electrical Options4 variants
BL22 12V 6000 RPM Request customization
Model & Selection Model & Selection
Model & Specification Comparison
SKU Motor Model Motor Type Rated Voltage No Load Speed Rated Speed No Load Current Rated Current Stall Current Rated Torque Stall Torque Rated Power Max Efficiency Motor Diameter Motor Length Motor Weight Shaft Diameter Shaft Configuration Working Lifespan Operating Temperature Range Housing Material Direction Of Rotation Number Of Pole Pairs Magnet Material Enameled Wire Material Insulation Class Hall Sensor Motor Control Gearbox
22126000 BL22-126000 Brushless DC Motor 12 V 6,000 rpm 5,000 rpm 180 mA 900 mA 2,800 mA 122 gf·cm 556 gf·cm 6 W 80 % 22 mm 67.4 mm 103 g 2 mm Single 5,000 hours -30 ~ 65 C 20 Steel Electronically reversible 8 Nd2Fe14B Enameled Copper Wire UEW No Sensorless external driver PG22 22121000 BL22-1210000 Brushless DC Motor 12 V 10,000 rpm 8,200 rpm 450 mA 2,200 mA 7,600 mA 163 gf·cm 866 gf·cm 14 W 80 % 22 mm 67.4 mm 103 g 2 mm Single 5,000 hours -30 ~ 65 C 20 Steel Electronically reversible 8 Nd2Fe14B Enameled Copper Wire UEW No Sensorless external driver PG22 22246000 BL22-246000 Brushless DC Motor 24 V 6,000 rpm 4,900 rpm 100 mA 500 mA 1,800 mA 138 gf·cm 607 gf·cm 7 W 80 % 22 mm 67.4 mm 103 g 2 mm Single 5,000 hours -30 ~ 65 C 20 Steel Electronically reversible 8 Nd2Fe14B Enameled Copper Wire UEW No Sensorless external driver PG22 22241000 BL22-2410000 Brushless DC Motor 24 V 10,000 rpm 8,300 rpm 250 mA 1,200 mA 4,500 mA 179 gf·cm 1,052 gf·cm 16 W 80 % 22 mm 67.4 mm 103 g 2 mm Single 5,000 hours -30 ~ 65 C 20 Steel Electronically reversible 8 Nd2Fe14B Enameled Copper Wire UEW No Sensorless external driver PG22
Technical Specifications Technical Specifications Motor Model BL22-126000 Motor Type Brushless DC Motor Rated Voltage 12 V No Load Speed 6,000 rpm Rated Speed 5,000 rpm No Load Current 180 mA Rated Current 900 mA Stall Current 2,800 mA Rated Torque 122 gf·cm Stall Torque 556 gf·cm Rated Power 6 W Max Efficiency 80 % Motor Diameter 22 mm Motor Length 67.4 mm Motor Weight 103 g Shaft Diameter 2 mm Shaft Configuration Single Working Lifespan 5,000 hours Operating Temperature Range -30 ~ 65 C Housing Material 20 Steel Direction Of Rotation Electronically reversible Number Of Pole Pairs 8 Magnet Material Nd2Fe14B Enameled Wire Material Enameled Copper Wire Insulation Class UEW Hall Sensor No Motor Control Sensorless external driver Gearbox PG22
