Motors
BLDC Motors
BL28

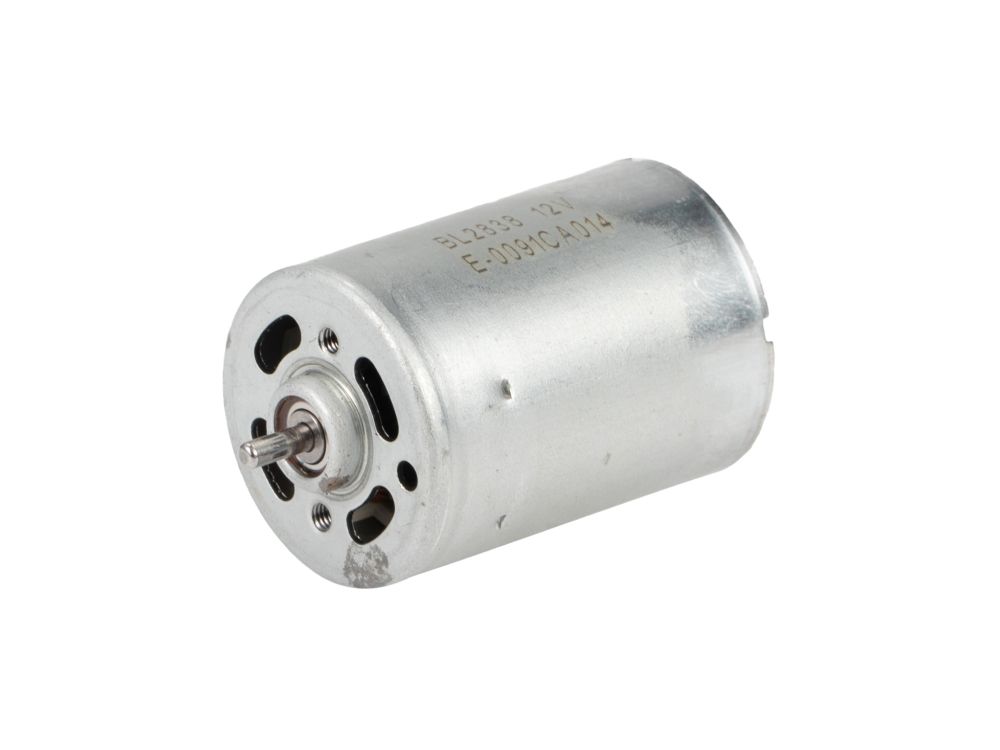

BL28 Brushless DC Motor
$16.99
MSRP
Key Data
Rated Voltage 12 V
Rated Torque 78 gf·cm
Rated Speed 5,300 rpm
Rated Current 490 mA
Rated Power 4 W
Electrical Options2 variants
BL28 12V 6000 RPM Request customization
Model & Selection Model & Selection
Model & Specification Comparison
SKU Motor Model Motor Type Rated Voltage No Load Speed Rated Speed No Load Current Rated Current Stall Current Rated Torque Stall Torque Rated Power Max Efficiency Motor Diameter Motor Length Motor Weight Shaft Diameter Shaft Configuration Working Lifespan Operating Temperature Range Noise Level At 30 cm Noise Level At 50 cm Housing Material Direction Of Rotation Number Of Pole Pairs Number Of Phases Magnet Material Enameled Wire Material Insulation Class Hall Sensor Motor Control Gearbox
28126000 BL28-126000 Brushless DC Motor 12 V 6,000 rpm 5,300 rpm 150 mA 490 mA 2,620 mA 78 gf·cm 497 gf·cm 4 W 80 % 27.7 mm 37.5 mm 84 g 2.3 mm Single 5,000 hours -30 ~ 65 C 48 dB 43 dB Electrolytic zinc coated steel Electronically reversible 4 3 Nd2Fe14B Enameled Copper Wire UEW Customized 3 phase rectangular wave rectified + PWM PG28 28246000 BL28-246000 Brushless DC Motor 24 V 6,000 rpm 5,100 rpm 100 mA 300 mA 4,300 mA 89 gf·cm 534 gf·cm 5 W 71 % 27.7 mm 37.5 mm 84 g 2.3 mm Single 5,000 hours -30 ~ 65 C 50 dB 45 dB Electrolytic zinc coated steel Electronically reversible 4 3 Nd2Fe14B Enameled Copper Wire UEW Customized 3 phase rectangular wave rectified + PWM PG28
Technical Specifications Technical Specifications Motor Model BL28-126000 Motor Type Brushless DC Motor Rated Voltage 12 V No Load Speed 6,000 rpm Rated Speed 5,300 rpm No Load Current 150 mA Rated Current 490 mA Stall Current 2,620 mA Rated Torque 78 gf·cm Stall Torque 497 gf·cm Rated Power 4 W Max Efficiency 80 % Motor Diameter 27.7 mm Motor Length 37.5 mm Motor Weight 84 g Shaft Diameter 2.3 mm Shaft Configuration Single Working Lifespan 5,000 hours Operating Temperature Range -30 ~ 65 C Noise Level At 30 cm 48 dB Noise Level At 50 cm 43 dB Housing Material Electrolytic zinc coated steel Direction Of Rotation Electronically reversible Number Of Pole Pairs 4 Number Of Phases 3 Magnet Material Nd2Fe14B Enameled Wire Material Enameled Copper Wire Insulation Class UEW Hall Sensor Customized Motor Control 3 phase rectangular wave rectified + PWM Gearbox PG28
