Motors
BLDC Motors
BL32

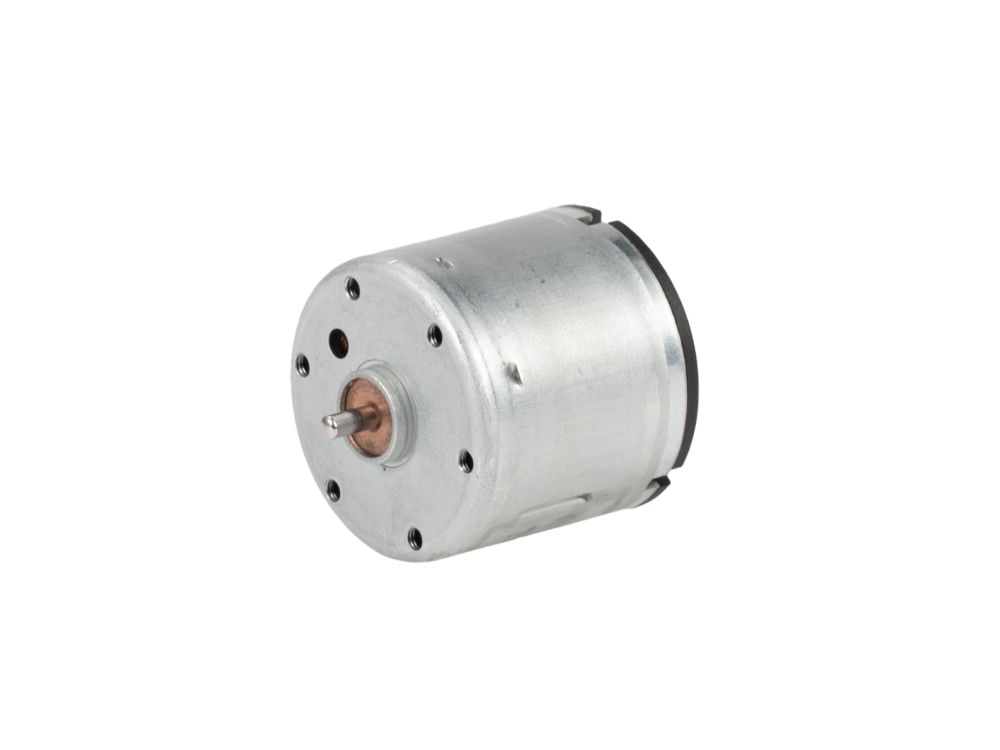

BL32 Brushless DC Motor
$16.99
MSRP
Key Data
Rated Voltage 18 V
Rated Torque 100 gf·cm
Rated Speed 6,200 rpm
Rated Current 710 mA
Rated Power 8 W
Electrical Options3 variants
BL32 18V 7500 RPM Request customization
Model & Selection Model & Selection
Model & Specification Comparison
SKU Motor Model Motor Type Rated Voltage No Load Speed Rated Speed No Load Current Rated Current Stall Current Rated Torque Stall Torque Rated Power Max Efficiency Motor Diameter Motor Length Motor Weight Shaft Diameter Shaft Configuration Working Lifespan Operating Temperature Range Noise Level At 30 cm Noise Level At 50 cm Housing Material Direction Of Rotation Number Of Pole Pairs Number Of Phases Magnet Material Enameled Wire Material Insulation Class Hall Sensor Motor Control Gearbox
32187500 BL32-187500 Brushless DC Motor 18 V 7,500 rpm 6,200 rpm 180 mA 710 mA 2,840 mA 100 gf·cm 570 gf·cm 8 W 65 % 32 mm 29 mm 80 g 2.5 mm Single 5,000 hours -30 ~ 65 C 43 dB 38 dB Electrolytic zinc coated steel Electronically reversible 6 3 Nd2Fe14B Enameled Copper Wire UEW No Sensorless Control PG32 32246000 BL32-246000 Brushless DC Motor 24 V 6,000 rpm 5,100 rpm 60 mA 260 mA 1,160 mA 72 gf·cm 424 gf·cm 4 W 69 % 32 mm 29 mm 80 g 2.5 mm Single 5,000 hours -30 ~ 65 C 42 dB 37 dB Electrolytic zinc coated steel Electronically reversible 6 3 Nd2Fe14B Enameled Copper Wire UEW No Sensorless Control PG32 32367500 BL32-367500 Brushless DC Motor 36 V 7,500 rpm 6,100 rpm 90 mA 420 mA 1,400 mA 130 gf·cm 670 gf·cm 7 W 72 % 32 mm 29 mm 80 g 2.5 mm Single 5,000 hours -30 ~ 65 C 54 dB 49 dB Electrolytic zinc coated steel Electronically reversible 6 3 Nd2Fe14B Enameled Copper Wire UEW No Sensorless Control PG32
Technical Specifications Technical Specifications Motor Model BL32-187500 Motor Type Brushless DC Motor Rated Voltage 18 V No Load Speed 7,500 rpm Rated Speed 6,200 rpm No Load Current 180 mA Rated Current 710 mA Stall Current 2,840 mA Rated Torque 100 gf·cm Stall Torque 570 gf·cm Rated Power 8 W Max Efficiency 65 % Motor Diameter 32 mm Motor Length 29 mm Motor Weight 80 g Shaft Diameter 2.5 mm Shaft Configuration Single Working Lifespan 5,000 hours Operating Temperature Range -30 ~ 65 C Noise Level At 30 cm 43 dB Noise Level At 50 cm 38 dB Housing Material Electrolytic zinc coated steel Direction Of Rotation Electronically reversible Number Of Pole Pairs 6 Number Of Phases 3 Magnet Material Nd2Fe14B Enameled Wire Material Enameled Copper Wire Insulation Class UEW Hall Sensor No Motor Control Sensorless Control Gearbox PG32
