Motors
DC Motors
DC2238

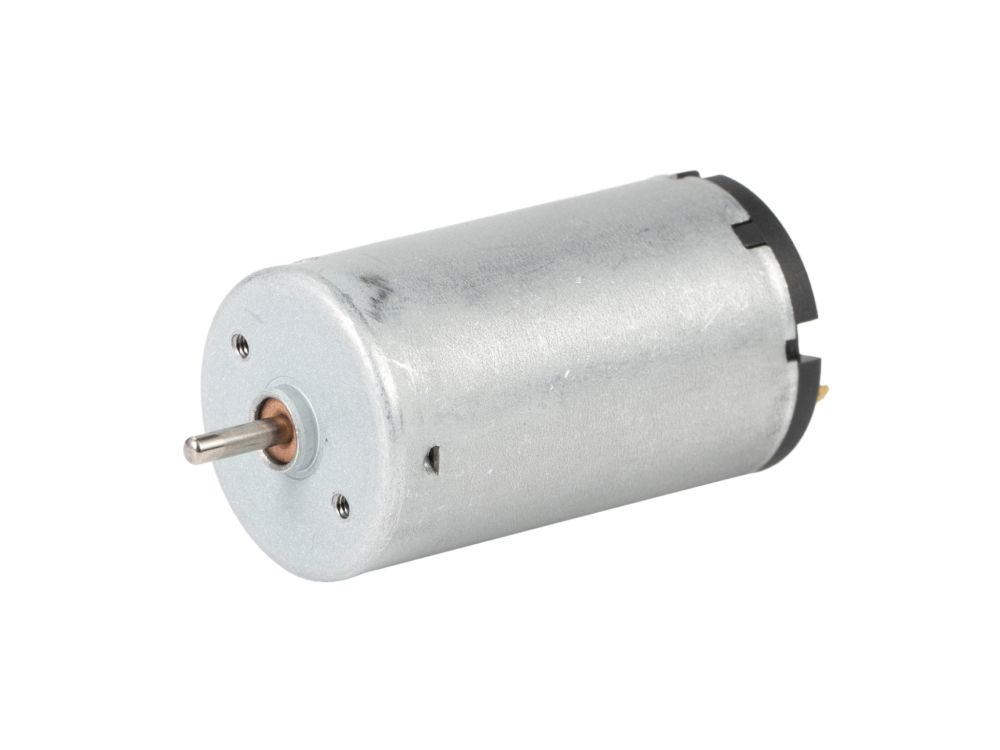

DC2238 Brushed DC Motor
$5.99
MSRP
Key Data
Rated Voltage 12 V
Rated Torque 35 gf·cm
Rated Speed 3,600 rpm
Rated Current 270 mA
Rated Power 1 W
Electrical Options4 variants
DC2238 12V 4500 RPM Request customization
Model & Selection Model & Selection
Model & Specification Comparison
SKU Motor Model Motor Type Rated Voltage No Load Speed Rated Speed No Load Current Rated Current Stall Current Rated Torque Stall Torque Rated Power Max Efficiency Motor Diameter Motor Length Motor Weight Shaft Diameter Shaft Configuration Connector Working Lifespan Operating Temperature Range Housing Material Direction Of Rotation Enameled Wire Material Magnet Material Carbon Brush Material Insulation Class Number Of Pole Pairs Gearbox
22381245 DC2238-124500 Brushed DC Motor 12 V 4,500 rpm 3,600 rpm 90 mA 270 mA 1,100 mA 35 gf·cm 160 gf·cm 1 W 75 % 22 mm 38.2 mm 48 g 2 mm Single/Dual 2 250 hours -30 ~ 65 C Electrolytic zinc coated steel CW/CCW Enameled copper wire Ferrite Metal graphite brush UEW 2 PG22 22381260 DC2238-126000 Brushed DC Motor 12 V 6,000 rpm 4,792 rpm 110 mA 350 mA 1,350 mA 50 gf·cm 250 gf·cm 2 W 75 % 22 mm 38.2 mm 48 g 2 mm Single/Dual 2 250 hours -30 ~ 65 C Electrolytic zinc coated steel CW/CCW Enameled copper wire Ferrite Metal graphite brush UEW 2 PG22 22382445 DC2238-244500 Brushed DC Motor 24 V 4,500 rpm 3,800 rpm 50 mA 140 mA 750 mA 35 gf·cm 265 gf·cm 2 W 75 % 22 mm 38.2 mm 48 g 2 mm Single/Dual 2 250 hours -30 ~ 65 C Electrolytic zinc coated steel CW/CCW Enameled copper wire Ferrite Metal graphite brush UEW 2 PG22 22382460 DC2238-246000 Brushed DC Motor 24 V 6,000 rpm 5,388 rpm 65 mA 185 mA 950 mA 50 gf·cm 317 gf·cm 3 W 75 % 22 mm 38.2 mm 48 g 2 mm Single/Dual 2 250 hours -30 ~ 65 C Electrolytic zinc coated steel CW/CCW Enameled copper wire Ferrite Metal graphite brush UEW 2 PG22
Technical Specifications Technical Specifications Motor Model DC2238-124500 Motor Type Brushed DC Motor Rated Voltage 12 V No Load Speed 4,500 rpm Rated Speed 3,600 rpm No Load Current 90 mA Rated Current 270 mA Stall Current 1,100 mA Rated Torque 35 gf·cm Stall Torque 160 gf·cm Rated Power 1 W Max Efficiency 75 % Motor Diameter 22 mm Motor Length 38.2 mm Motor Weight 48 g Shaft Diameter 2 mm Shaft Configuration Single/Dual Connector 2 Working Lifespan 250 hours Operating Temperature Range -30 ~ 65 C Housing Material Electrolytic zinc coated steel Direction Of Rotation CW/CCW Enameled Wire Material Enameled copper wire Magnet Material Ferrite Carbon Brush Material Metal graphite brush Insulation Class UEW Number Of Pole Pairs 2 Gearbox PG22
Downloads Downloads
Downloads
PDF
DC2238-2D
PDF · 82.3KB
Download
