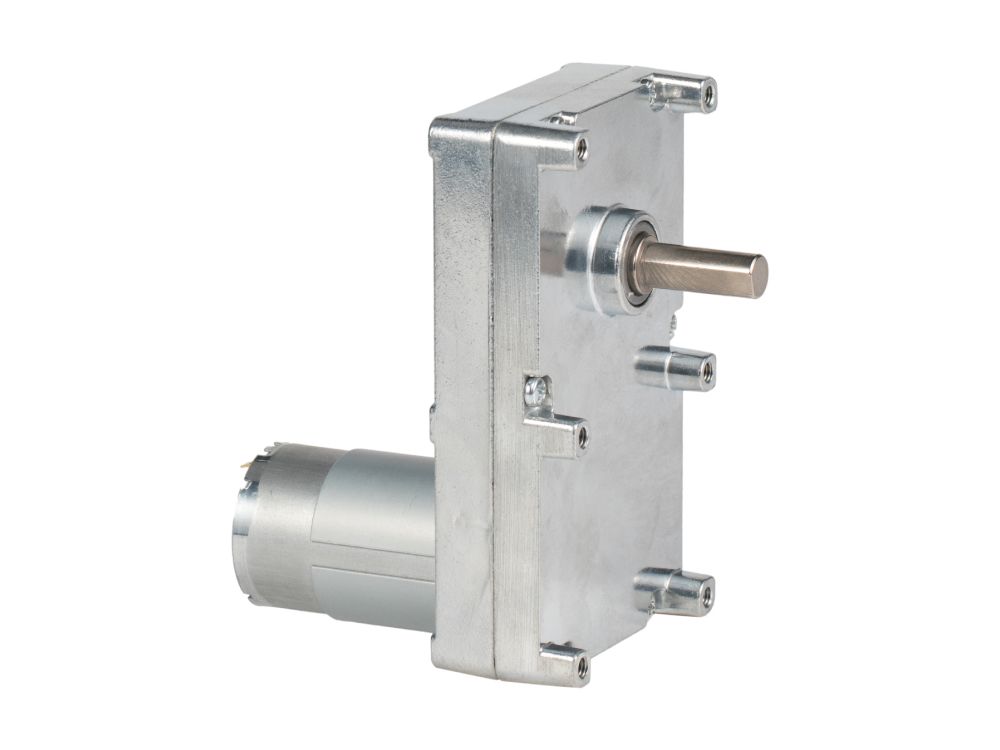

GF555 DC Gearmotors - Flat

USD 26.58 MSRP

Key Data

Gearbox Weight: 850 g
Rated Voltage: 12 V
Rated Speed: 20 rpm
Rated Torque: 16595 gf·cm
Rated Power: 3488 W

Motor Options6 variants

DC555 12V 3000 RPM

Gearbox Options11 variants

GF 127:1

Request customization

Model & Specification Comparison

Motors 6 options

55512300 DC555 12V 3000 RPM In stock 99

Gearboxes 11 options

GF1270 GF 127:1 In stock 99

Product specifications
Product Model	GF555123000-
Gearbox Weight	850 g
Rated Voltage	12 V
No Load Speed	23.622047 rpm
Rated Speed	20 rpm
No Load Current	180 mA
Rated Current	600 mA
Stall Current	3,100 mA
Rated Torque	16595 gf·cm
Stall Torque	152971.5 gf·cm
Rated Power	3488 W
Max Efficiency	52.560 %
Gearbox Length	176 mm
Gear Ratio	127 :1
Number Of Gear Stages	3
Max Continuous Torque	30 gf·cm
Instantaneous Break Torque	90 gf·cm
Backlash	3 °
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	600 hours
