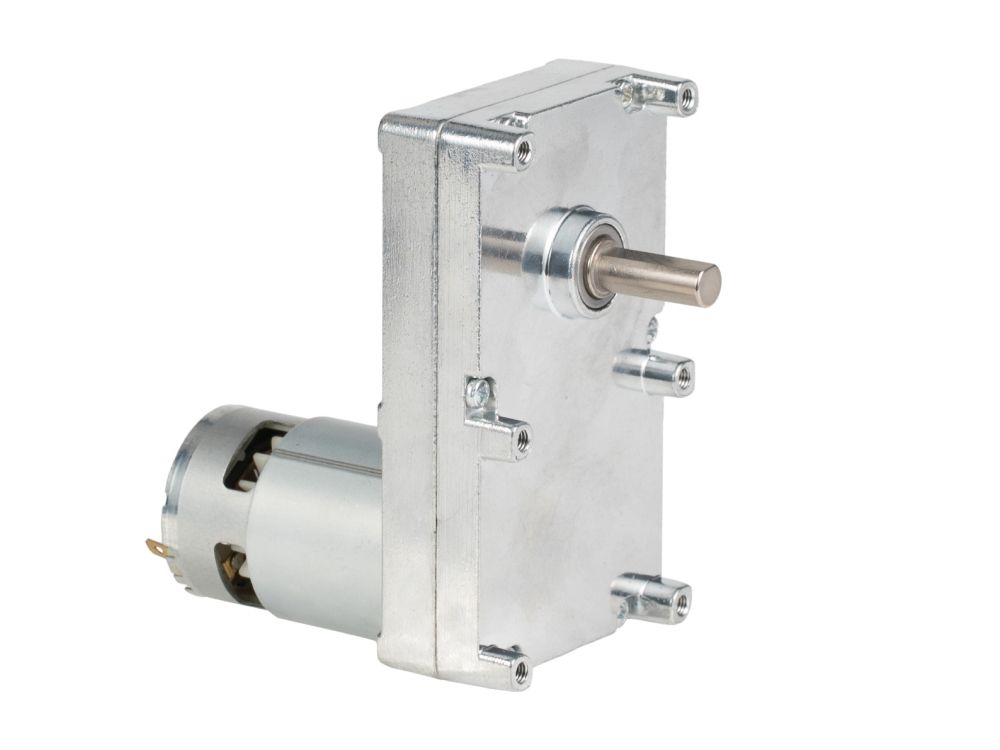

GF775 DC Gearmotors - Flat

USD 27.98 MSRP

Key Data

Gearbox Weight: 967 g
Rated Voltage: 12 V
Rated Speed: 19 rpm
Rated Torque: 32449 gf·cm
Rated Power: 6427 W

Motor Options6 variants

DC775 12V 3000 RPM

Gearbox Options11 variants

GF 127:1

Request customization

Model & Specification Comparison

Motors 6 options

77512300 DC775 12V 3000 RPM In stock 99

Gearboxes 11 options

GF1270 GF 127:1 In stock 99

Product specifications
Product Model	GF775123000-
Gearbox Weight	967 g
Rated Voltage	12 V
No Load Speed	23.622047 rpm
Rated Speed	19 rpm
No Load Current	420 mA
Rated Current	1,200 mA
Stall Current	6,000 mA
Rated Torque	32449 gf·cm
Stall Torque	211378.8 gf·cm
Rated Power	6427 W
Max Efficiency	52.560 %
Gearbox Length	185 mm
Gear Ratio	127 :1
Number Of Gear Stages	3
Max Continuous Torque	30 gf·cm
Instantaneous Break Torque	90 gf·cm
Backlash	3 °
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	800 hours
Noise Level @ 30cm	53
