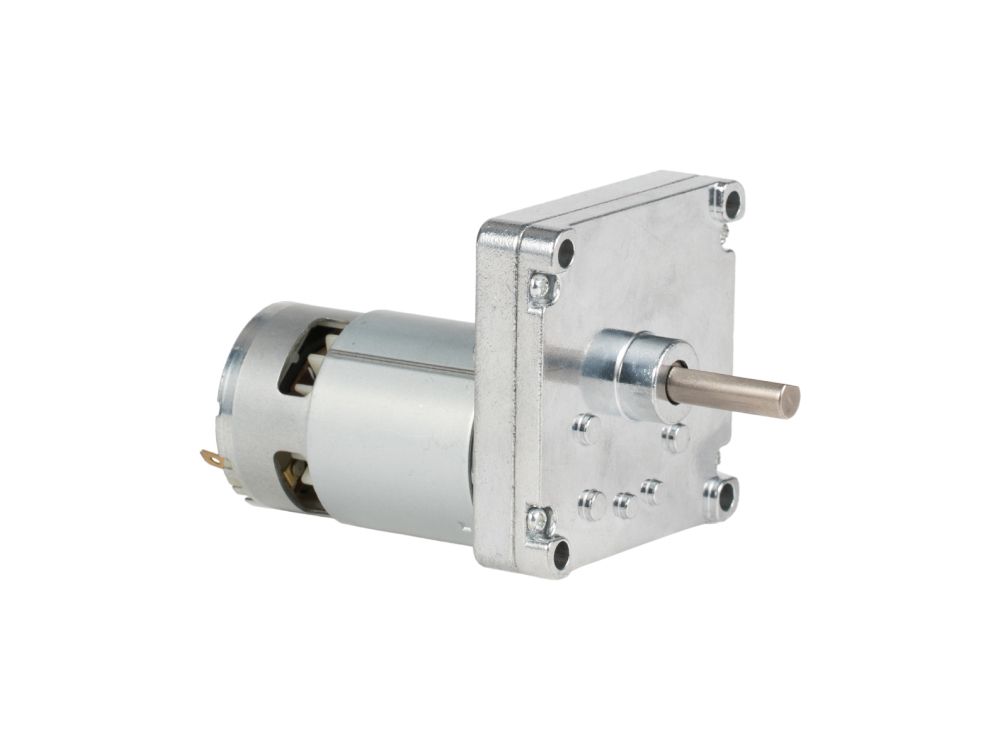

MG775 DC Gearmotors - Flat

USD 15.98 MSRP

Key Data

Gearbox Weight: 611 g
Rated Voltage: 12 V
Rated Speed: 188 rpm
Rated Torque: 3322 gf·cm
Rated Power: 6427 W

Motor Options6 variants

DC775 12V 3000 RPM

Gearbox Options13 variants

MG 13:1

Request customization

Model & Specification Comparison

Motors 6 options

77512300 DC775 12V 3000 RPM In stock 99

Gearboxes 13 options

MG1300 MG 13:1 In stock 99

Product specifications
Product Model	MG775123000-
Gearbox Weight	611 g
Rated Voltage	12 V
No Load Speed	230.769231 rpm
Rated Speed	188 rpm
No Load Current	420 mA
Rated Current	1,200 mA
Stall Current	6,000 mA
Rated Torque	3322 gf·cm
Stall Torque	21637.2 gf·cm
Rated Power	6427 W
Max Efficiency	52.560 %
Gearbox Length	136 mm
Gear Ratio	13 :1
Number Of Gear Stages	3
Max Continuous Torque	10 gf·cm
Instantaneous Break Torque	30 gf·cm
Backlash	3 °
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	800 hours
Noise Level @ 30cm	53
