Motors
Outrunner BLDC Motors
MX22

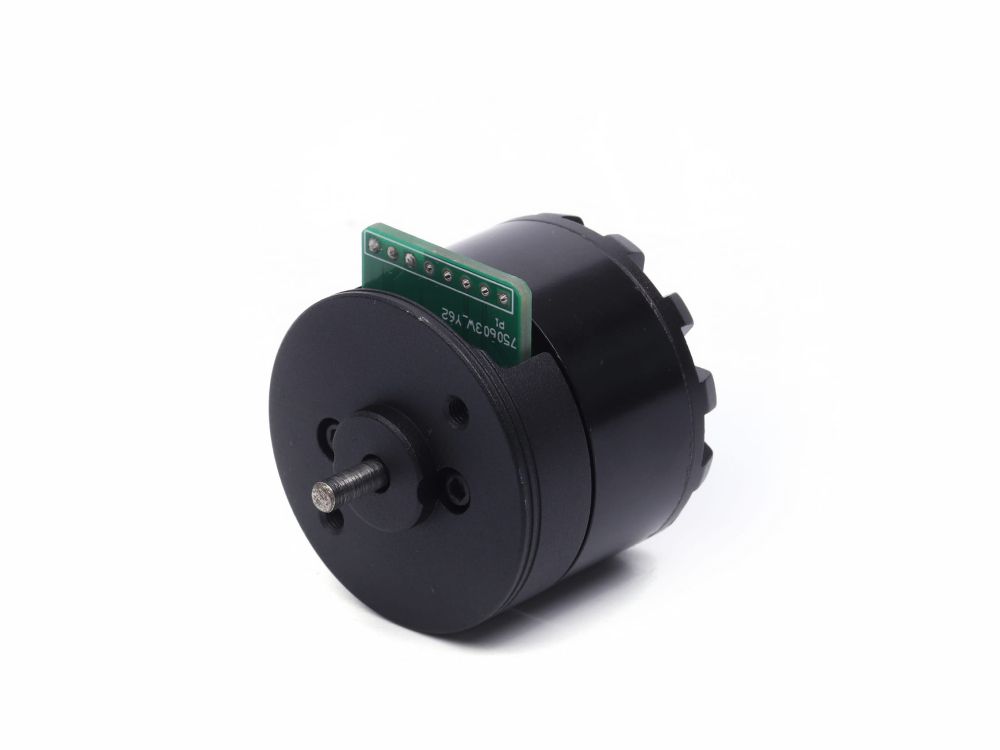

MX22 Outrunner BLDC Motors
$27.90
MSRP
Key Data
Rated Voltage 12 V
Rated Torque 330 gf·cm
Rated Speed 3,300 rpm
Rated Current 1,300 mA
Rated Power 15 W
Electrical Options2 variants
MX22 12V 4300 RPM Request customization
Model & Selection Model & Selection
Model & Specification Comparison
SKU Motor Model Motor Type Rated Voltage No Load Speed Rated Speed No Load Current Rated Current Stall Current Rated Torque Stall Torque Rated Power Max Efficiency Motor Diameter Motor Length Motor Weight Shaft Diameter Shaft Configuration Connector Working Lifespan Operating Temperature Range Housing Material Direction Of Rotation Number Of Pole Pairs Number Of Phases Rotor Inertia Speed Constant Torque Constant Single Phase Resistance DQ Inductance Friction Magnet Material Enameled Wire Material Insulation Class Hall Sensor Type Number of Halls Electrical Angle Gearbox
22124300 MX2210KV360-12V Outrunner BLDC Motor 12 V 4,300 rpm 3,300 rpm 150 mA 1,300 mA 4,500 mA 330 gf·cm 1,050 gf·cm 15 W 83 % 28 mm 26 mm 52 g 3 mm Single GH1.25-F-8P 3,000 hours -30 ~ 65 C Anodized Aluminum Alloy Housing CW/CCW 7 3 0.750 g·cm² 360 KV 23 mNm/A 750 mOhm 100 uH 0.50 µN·m·s Nd2Fe14B Enameled Copper Wire UEW bipolar self-locking hall 3 120 ° PG28 22248600 MX2210KV360-24V Outrunner BLDC Motor 24 V 8,600 rpm 7,200 rpm 260 mA 1,700 mA 8,000 mA 450 gf·cm 2,100 gf·cm 45 W 84 % 28 mm 26 mm 52 g 3 mm Single GH1.25-F-8P 3,000 hours -30 ~ 65 C Anodized Aluminum Alloy Housing CW/CCW 7 3 0.750 g·cm² 360 KV 23 mNm/A 750 mOhm 100 uH 0.50 µN·m·s Nd2Fe14B Enameled Copper Wire UEW bipolar self-locking hall 3 120 ° PG28
Technical Specifications Technical Specifications Motor Model MX2210KV360-12V Motor Type Outrunner BLDC Motor Rated Voltage 12 V No Load Speed 4,300 rpm Rated Speed 3,300 rpm No Load Current 150 mA Rated Current 1,300 mA Stall Current 4,500 mA Rated Torque 330 gf·cm Stall Torque 1,050 gf·cm Rated Power 15 W Max Efficiency 83 % Motor Diameter 28 mm Motor Length 26 mm Motor Weight 52 g Shaft Diameter 3 mm Shaft Configuration Single Connector GH1.25-F-8P Working Lifespan 3,000 hours Operating Temperature Range -30 ~ 65 C Housing Material Anodized Aluminum Alloy Housing Direction Of Rotation CW/CCW Number Of Pole Pairs 7 Number Of Phases 3 Rotor Inertia 0.750 g·cm² Speed Constant 360 KV Torque Constant 23 mNm/A Single Phase Resistance 750 mOhm DQ Inductance 100 uH Friction 0.50 µN·m·s Magnet Material Nd2Fe14B Enameled Wire Material Enameled Copper Wire Insulation Class UEW Hall Sensor Type bipolar self-locking hall Number of Halls 3 Electrical Angle 120 ° Gearbox PG28
