Motors
Outrunner BLDC Motors

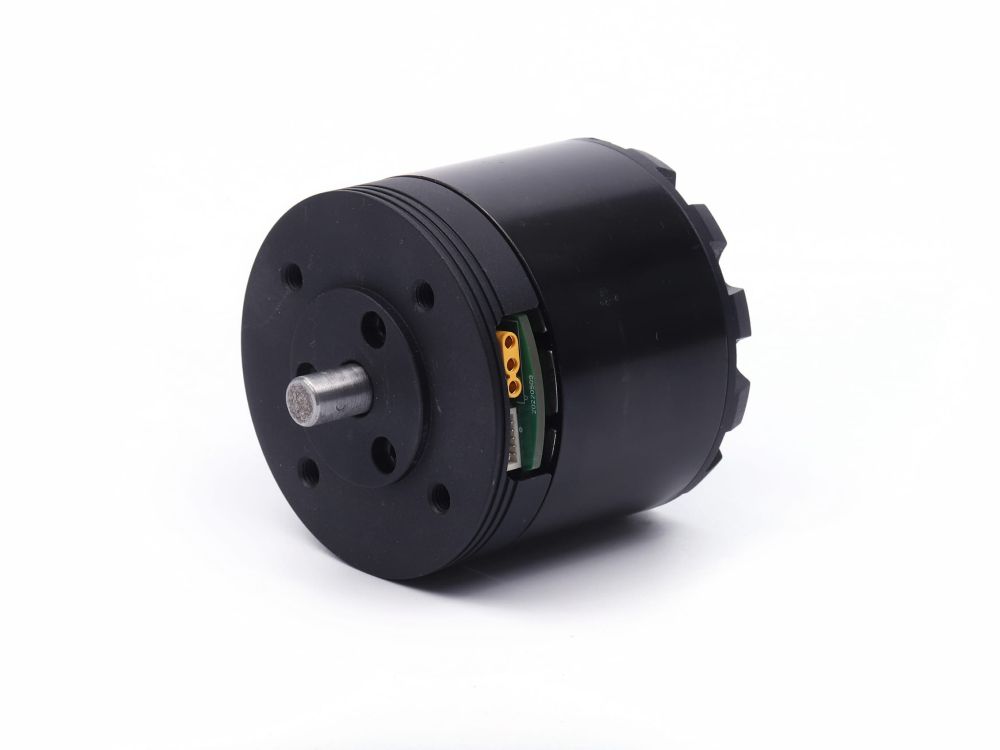

MX28
MX28 Outrunner BLDC Motors
$29.90
MSRP
Key Data
Rated Voltage 12 V
Rated Torque 0 gf·cm
Rated Speed 1,150 rpm
Rated Current 0.90 mA
Rated Power 6 W
Electrical Options2 variants
MX28 1800 RPM Request customization
Model & Selection Model & Selection
Model & Specification Comparison
SKU Motor Model Motor Type Rated Voltage No Load Speed Rated Speed No Load Current Rated Current Stall Current Rated Torque Stall Torque Rated Power Max Efficiency Motor Diameter Motor Length Motor Weight Shaft Diameter Shaft Configuration Connector Working Lifespan Operating Temperature Range Housing Material Direction Of Rotation Number Of Pole Pairs Number Of Phases Rotor Inertia Speed Constant Torque Constant Single Phase Resistance DQ Inductance Friction Magnet Material Enameled Wire Material Insulation Class Hall Sensor Type Number of Halls Electrical Angle Gearbox
28121800 MX2810KV150-12V Outrunner BLDC Motor 12 V 1,800 rpm 1,150 rpm 0.11 mA 0.90 mA 2.20 mA 0 gf·cm 1.22 gf·cm 6 W 63 % 36 mm 30 mm 90 g 3.17 mm Single GH1.25-F-14P 3,000 hours -30 ~ 65 C Anodized Aluminum Alloy Housing CW/CCW 7 3 1.600 g·cm² 150 KV 52 mNm/A 2 mOhm 400 uH 0.50 µN·m·s Nd2Fe14B Enameled Copper Wire UEW bipolar self-locking hall 3 120 ° PG36 28243600 MX2810KV150-24V Outrunner BLDC Motor 24 V 3,600 rpm 2,400 rpm 0.12 mA 1.40 mA 3.50 mA 1 gf·cm 1.84 gf·cm 22 W 70 % 36 mm 30 mm 90 g 3.17 mm Single GH1.25-F-14P 3,000 hours -30 ~ 65 C Anodized Aluminum Alloy Housing CW/CCW 7 3 1.600 g·cm² 150 KV 52 mNm/A 2 mOhm 400 uH 0.50 µN·m·s Nd2Fe14B Enameled Copper Wire UEW bipolar self-locking hall 3 120 ° PG36
Technical Specifications Technical Specifications Motor Model MX2810KV150-12V Motor Type Outrunner BLDC Motor Rated Voltage 12 V No Load Speed 1,800 rpm Rated Speed 1,150 rpm No Load Current 0.11 mA Rated Current 0.90 mA Stall Current 2.20 mA Rated Torque 0 gf·cm Stall Torque 1.22 gf·cm Rated Power 6 W Max Efficiency 63 % Motor Diameter 36 mm Motor Length 30 mm Motor Weight 90 g Shaft Diameter 3.17 mm Shaft Configuration Single Connector GH1.25-F-14P Working Lifespan 3,000 hours Operating Temperature Range -30 ~ 65 C Housing Material Anodized Aluminum Alloy Housing Direction Of Rotation CW/CCW Number Of Pole Pairs 7 Number Of Phases 3 Rotor Inertia 1.600 g·cm² Speed Constant 150 KV Torque Constant 52 mNm/A Single Phase Resistance 2 mOhm DQ Inductance 400 uH Friction 0.50 µN·m·s Magnet Material Nd2Fe14B Enameled Wire Material Enameled Copper Wire Insulation Class UEW Hall Sensor Type bipolar self-locking hall Number of Halls 3 Electrical Angle 120 ° Gearbox PG36
