Motors
Outrunner BLDC Motors
MX33

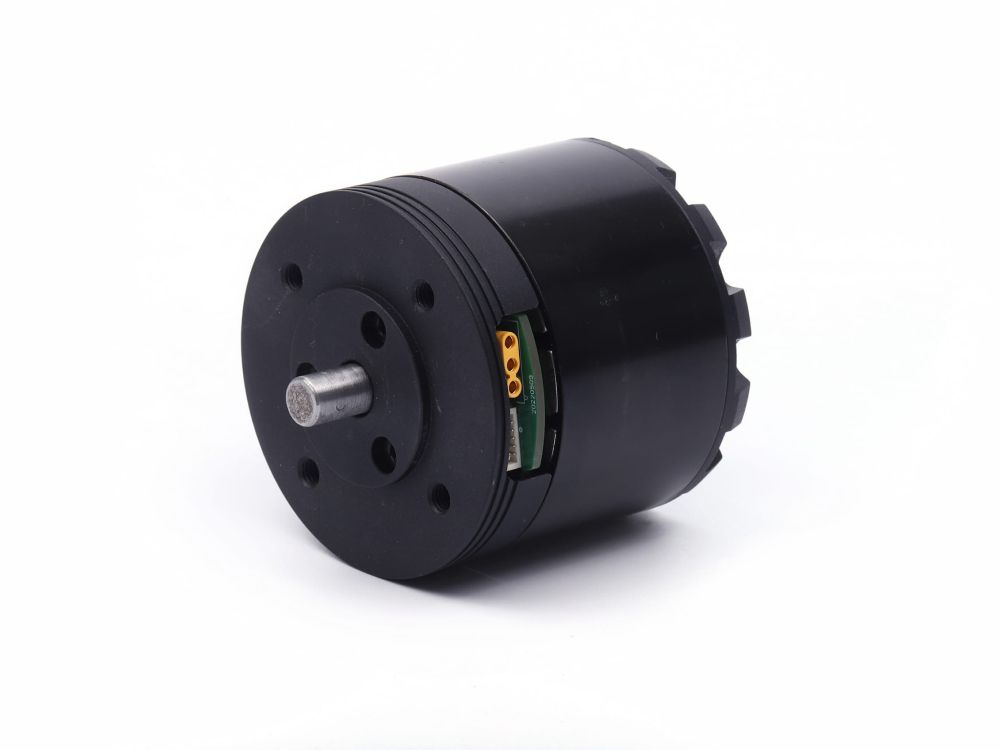

MX33 Outrunner BLDC Motors
$39.90
MSRP
Key Data
Rated Voltage 12 V
Rated Torque 1 gf·cm
Rated Speed 1,100 rpm
Rated Current 0.80 mA
Rated Power 8 W
Electrical Options2 variants
MX33 1500 RPM Request customization
Model & Selection Model & Selection
Model & Specification Comparison
SKU Motor Model Motor Type Rated Voltage No Load Speed Rated Speed No Load Current Rated Current Stall Current Rated Torque Stall Torque Rated Power Max Efficiency Motor Diameter Motor Length Motor Weight Shaft Diameter Shaft Configuration Connector Working Lifespan Operating Temperature Range Housing Material Direction Of Rotation Number Of Pole Pairs Number Of Phases Rotor Inertia Speed Constant Torque Constant Single Phase Resistance DQ Inductance Friction Magnet Material Enameled Wire Material Insulation Class Hall Sensor Type Number of Halls Electrical Angle Gearbox
33121500 MX3310KV125-12V Outrunner BLDC Motor 12 V 1,500 rpm 1,100 rpm 0.09 mA 0.80 mA 3.50 mA 1 gf·cm 3.06 gf·cm 8 W 80 % 42 mm 32 mm 130 g 5 mm Single GH1.25-F-5P 3,000 hours -30 ~ 65 C Anodized Aluminum Alloy Housing CW/CCW 7 3 2.700 g·cm² 125 KV 45 mNm/A 1.75 mOhm 450 uH 0.50 µN·m·s Nd2Fe14B Enameled Copper Wire UEW bipolar self-locking hall 3 120 ° PG42 33243000 MX3310KV125-24V Outrunner BLDC Motor 24 V 3,000 rpm 2,100 rpm 0.15 mA 1.60 mA 4.50 mA 1 gf·cm 3.26 gf·cm 30 W 82 % 42 mm 32 mm 130 g 5 mm Single GH1.25-F-5P 3,000 hours -30 ~ 65 C Anodized Aluminum Alloy Housing CW/CCW 7 3 2.700 g·cm² 125 KV 45 mNm/A 1.75 mOhm 450 uH 0.50 µN·m·s Nd2Fe14B Enameled Copper Wire UEW bipolar self-locking hall 3 120 ° PG42
Technical Specifications Technical Specifications Motor Model MX3310KV125-12V Motor Type Outrunner BLDC Motor Rated Voltage 12 V No Load Speed 1,500 rpm Rated Speed 1,100 rpm No Load Current 0.09 mA Rated Current 0.80 mA Stall Current 3.50 mA Rated Torque 1 gf·cm Stall Torque 3.06 gf·cm Rated Power 8 W Max Efficiency 80 % Motor Diameter 42 mm Motor Length 32 mm Motor Weight 130 g Shaft Diameter 5 mm Shaft Configuration Single Connector GH1.25-F-5P Working Lifespan 3,000 hours Operating Temperature Range -30 ~ 65 C Housing Material Anodized Aluminum Alloy Housing Direction Of Rotation CW/CCW Number Of Pole Pairs 7 Number Of Phases 3 Rotor Inertia 2.700 g·cm² Speed Constant 125 KV Torque Constant 45 mNm/A Single Phase Resistance 1.75 mOhm DQ Inductance 450 uH Friction 0.50 µN·m·s Magnet Material Nd2Fe14B Enameled Wire Material Enameled Copper Wire Insulation Class UEW Hall Sensor Type bipolar self-locking hall Number of Halls 3 Electrical Angle 120 ° Gearbox PG42
