Motors
Outrunner BLDC Motors
MX42

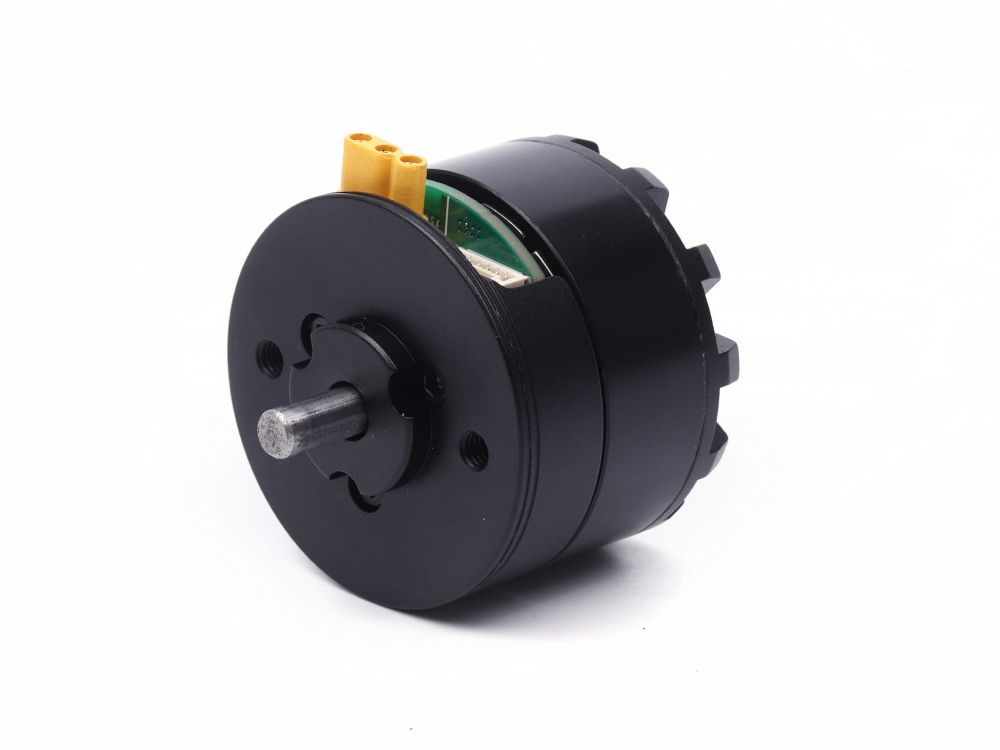

MX42 Outrunner BLDC Motors
$49.90
MSRP
Key Data
Rated Voltage 24 V
Rated Torque 3 gf·cm
Rated Speed 2,550 rpm
Rated Current 4.20 mA
Rated Power 74 W
Electrical Options2 variants
MX42 3600 RPM Request customization
Model & Selection Model & Selection
Model & Specification Comparison
SKU Motor Model Motor Type Rated Voltage No Load Speed Rated Speed No Load Current Rated Current Stall Current Rated Torque Stall Torque Rated Power Max Efficiency Motor Diameter Motor Length Motor Weight Shaft Diameter Shaft Configuration Connector Working Lifespan Operating Temperature Range Housing Material Direction Of Rotation Number Of Pole Pairs Number Of Phases Rotor Inertia Speed Constant Torque Constant Single Phase Resistance DQ Inductance Friction Magnet Material Enameled Wire Material Insulation Class Hall Sensor Type Number of Halls Electrical Angle Gearbox
42243600 MX4210KV150-24V Outrunner BLDC Motor 24 V 3,600 rpm 2,550 rpm 0.23 mA 4.20 mA 11.50 mA 3 gf·cm 6.83 gf·cm 74 W 85 % 52 mm 34 mm 220 g 6.35 mm Single GH1.25-F-5P 3,000 hours -30 ~ 65 C Anodized Aluminum Alloy Housing CW/CCW 7 3 6.500 g·cm² 150 KV 65 mNm/A 0.41 mOhm 200 uH 0.50 µN·m·s Nd2Fe14B Enameled Copper Wire UEW bipolar self-locking hall 3 120 ° PG52 42487200 MX4210KV150-48V Outrunner BLDC Motor 48 V 7,200 rpm 3,100 rpm 0.30 mA 8.40 mA 25 mA 6 gf·cm 13.26 gf·cm 256 W 86 % 52 mm 34 mm 220 g 6.35 mm Single GH1.25-F-5P 3,000 hours -30 ~ 65 C Anodized Aluminum Alloy Housing CW/CCW 7 3 6.500 g·cm² 150 KV 65 mNm/A 0.41 mOhm 200 uH 0.50 µN·m·s Nd2Fe14B Enameled Copper Wire UEW bipolar self-locking hall 3 120 ° PG52
Technical Specifications Technical Specifications Motor Model MX4210KV150-24V Motor Type Outrunner BLDC Motor Rated Voltage 24 V No Load Speed 3,600 rpm Rated Speed 2,550 rpm No Load Current 0.23 mA Rated Current 4.20 mA Stall Current 11.50 mA Rated Torque 3 gf·cm Stall Torque 6.83 gf·cm Rated Power 74 W Max Efficiency 85 % Motor Diameter 52 mm Motor Length 34 mm Motor Weight 220 g Shaft Diameter 6.35 mm Shaft Configuration Single Connector GH1.25-F-5P Working Lifespan 3,000 hours Operating Temperature Range -30 ~ 65 C Housing Material Anodized Aluminum Alloy Housing Direction Of Rotation CW/CCW Number Of Pole Pairs 7 Number Of Phases 3 Rotor Inertia 6.500 g·cm² Speed Constant 150 KV Torque Constant 65 mNm/A Single Phase Resistance 0.41 mOhm DQ Inductance 200 uH Friction 0.50 µN·m·s Magnet Material Nd2Fe14B Enameled Wire Material Enameled Copper Wire Insulation Class UEW Hall Sensor Type bipolar self-locking hall Number of Halls 3 Electrical Angle 120 ° Gearbox PG52
