Motors
Outrunner BLDC Motors
MX53

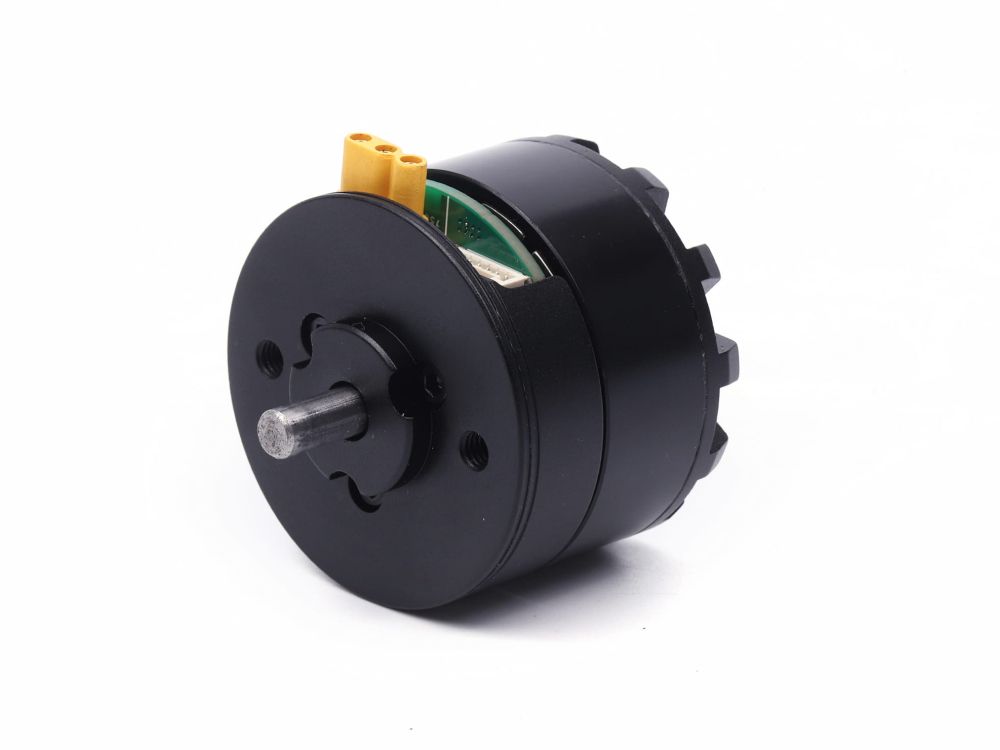

MX53 Outrunner BLDC Motors
$59.90
MSRP
Key Data
Rated Voltage 24 V
Rated Torque 5 gf·cm
Rated Speed 2,450 rpm
Rated Current 1.20 mA
Rated Power 100 W
Electrical Options2 variants
MX53 3600 RPM Request customization
Model & Selection Model & Selection
Model & Specification Comparison
SKU Motor Model Motor Type Rated Voltage No Load Speed Rated Speed No Load Current Rated Current Stall Current Rated Torque Stall Torque Rated Power Max Efficiency Motor Diameter Motor Length Motor Weight Shaft Diameter Shaft Configuration Connector Working Lifespan Operating Temperature Range Housing Material Direction Of Rotation Number Of Pole Pairs Number Of Phases Rotor Inertia Speed Constant Torque Constant Single Phase Resistance DQ Inductance Friction Magnet Material Enameled Wire Material Insulation Class Hall Sensor Type Number of Halls Electrical Angle Gearbox
53243600 MX5310KV100-24V Outrunner BLDC Motor 24 V 3,600 rpm 2,450 rpm 0.23 mA 1.20 mA 14 mA 5 gf·cm 14.79 gf·cm 100 W 82 % 62 mm 37 mm 300 g 8 mm Single GH1.25-F-5P 3,000 hours -30 ~ 65 C Anodized Aluminum Alloy Housing CW/CCW 7 3 8.200 g·cm² 100 KV 44 mNm/A 0.40 mOhm 400 uH 0.60 µN·m·s Nd2Fe14B Enameled Copper Wire UEW bipolar self-locking hall 3 120 ° PG56 53487200 MX5310KV100-48V Outrunner BLDC Motor 48 V 7,200 rpm 4,900 rpm 0.50 mA 2.40 mA 30 mA 10 gf·cm 28.55 gf·cm 380 W 83 % 62 mm 37 mm 300 g 8 mm Single GH1.25-F-5P 3,000 hours -30 ~ 65 C Anodized Aluminum Alloy Housing CW/CCW 7 3 8.200 g·cm² 100 KV 44 mNm/A 0.40 mOhm 400 uH 0.60 µN·m·s Nd2Fe14B Enameled Copper Wire UEW bipolar self-locking hall 3 120 ° PG56
Technical Specifications Technical Specifications Motor Model MX5310KV100-24V Motor Type Outrunner BLDC Motor Rated Voltage 24 V No Load Speed 3,600 rpm Rated Speed 2,450 rpm No Load Current 0.23 mA Rated Current 1.20 mA Stall Current 14 mA Rated Torque 5 gf·cm Stall Torque 14.79 gf·cm Rated Power 100 W Max Efficiency 82 % Motor Diameter 62 mm Motor Length 37 mm Motor Weight 300 g Shaft Diameter 8 mm Shaft Configuration Single Connector GH1.25-F-5P Working Lifespan 3,000 hours Operating Temperature Range -30 ~ 65 C Housing Material Anodized Aluminum Alloy Housing Direction Of Rotation CW/CCW Number Of Pole Pairs 7 Number Of Phases 3 Rotor Inertia 8.200 g·cm² Speed Constant 100 KV Torque Constant 44 mNm/A Single Phase Resistance 0.40 mOhm DQ Inductance 400 uH Friction 0.60 µN·m·s Magnet Material Nd2Fe14B Enameled Wire Material Enameled Copper Wire Insulation Class UEW Hall Sensor Type bipolar self-locking hall Number of Halls 3 Electrical Angle 120 ° Gearbox PG56
