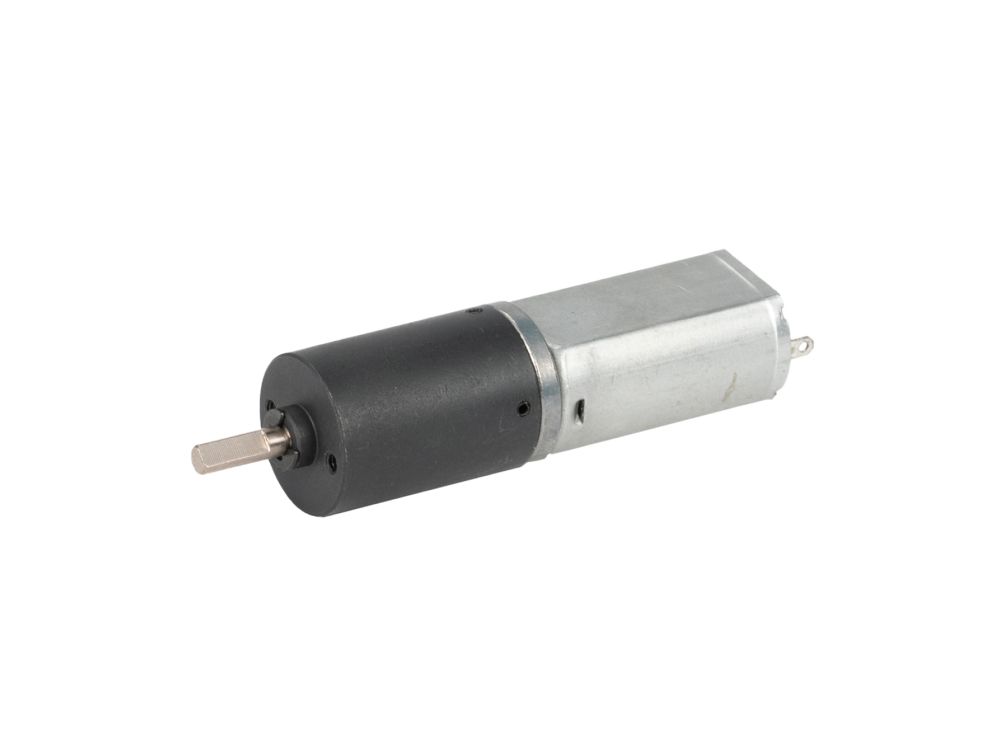

PG16050 Planetary Gear Motor

USD 20.48 MSRP

Key Data

Gearbox Weight: 30 g
Rated Voltage: 12 V
Rated Speed: 1,750 rpm
Rated Torque: 29 gf·cm
Rated Power: 517 W

Motor Options3 variants

DC050 12V 9000 RPM

Gearbox Options12 variants

PG16 4:1

Request customization

Dimensional Drawing

Model & Specification Comparison

Motors 3 options

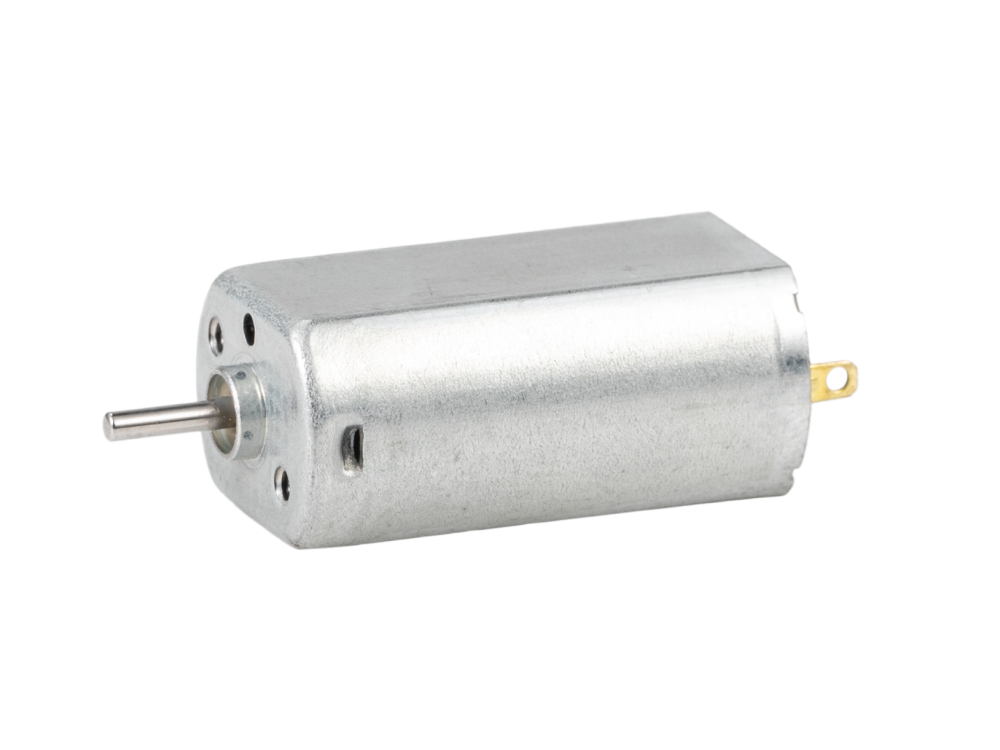

5012900 DC050 12V 9000 RPM In stock 99

Gearboxes 12 options

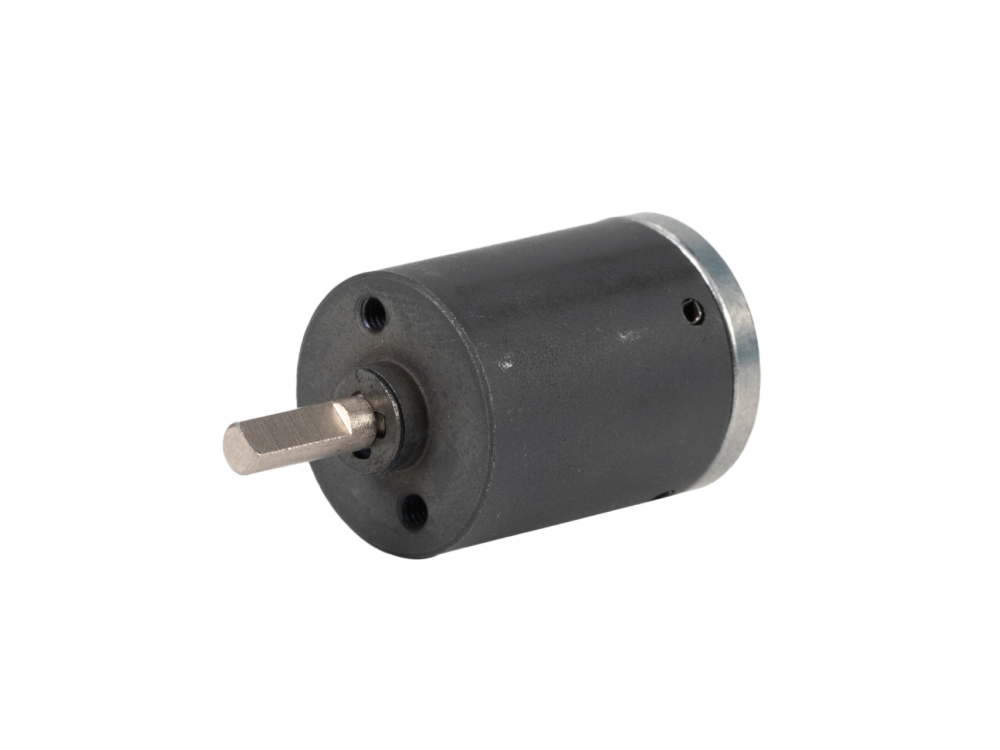

PG164000 PG16 4:1 In stock 99

Product specifications
Product Model	PG16050129000-4K
Gearbox Weight	30 g
Rated Voltage	12 V
No Load Speed	2,250 rpm
Rated Speed	1,750 rpm
No Load Current	45 mA
Rated Current	140 mA
Stall Current	500 mA
Rated Torque	29 gf·cm
Stall Torque	162 gf·cm
Rated Power	517 W
Max Efficiency	67.500 %
Motor Diameter	16 mm
Gearbox Length	40.6 mm
Gear Ratio	4 :1
Number Of Gear Stages	1
Max Continuous Torque	1 gf·cm
Instantaneous Break Torque	3 gf·cm
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	150 hours
