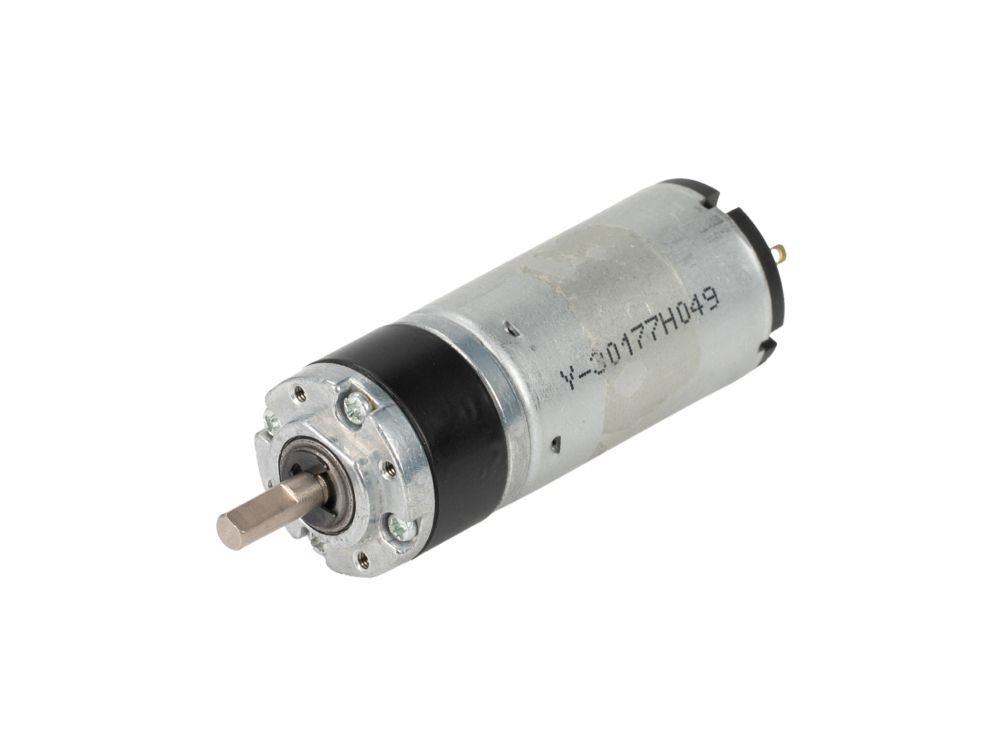

PG222238 Planetary Gear Motor

USD 18.48 MSRP

Key Data

Gearbox Weight: 61 g
Rated Voltage: 12 V
Rated Speed: 1636 rpm
Rated Torque: 95 gf·cm
Rated Power: 1597 W

Motor Options4 variants

DC180 12V 9000 RPM

Gearbox Options11 variants

PG22 4.4:1

Request customization

Model & Specification Comparison

Motors 4 options

18012900 DC180 12V 9000 RPM In stock 99

Gearboxes 11 options

PG224400 PG22 4.4:1 In stock 99

Product specifications
Product Model	PG22180129000-4.4K
Gearbox Weight	61 g
Rated Voltage	12 V
No Load Speed	2045.454545 rpm
Rated Speed	1636 rpm
No Load Current	50 mA
Rated Current	300 mA
Stall Current	950 mA
Rated Torque	95 gf·cm
Stall Torque	475.2 gf·cm
Rated Power	1597 W
Max Efficiency	64.800 %
Motor Diameter	22 mm
Gearbox Length	46 mm
Gear Ratio	4.4 :1
Number Of Gear Stages	1
Max Continuous Torque	3 gf·cm
Instantaneous Break Torque	9 gf·cm
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	150 hours
