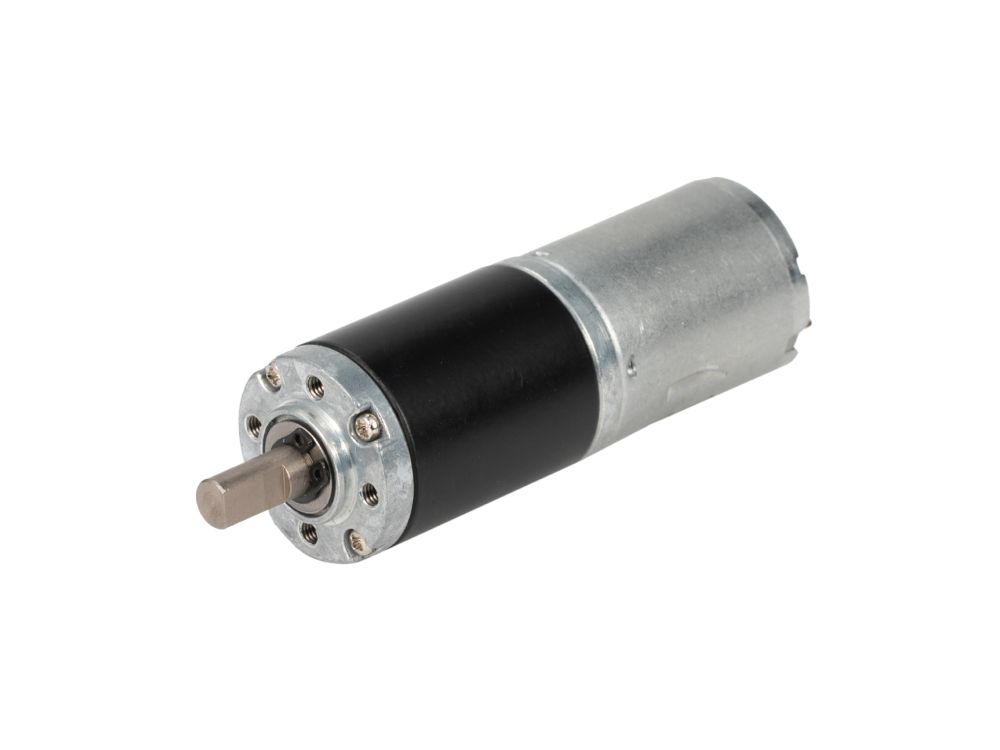

PG25370 Planetary Gear Motor

USD 18.48 MSRP

Key Data

Gearbox Weight: 99 g
Rated Voltage: 12 V
Rated Speed: 975 rpm
Rated Torque: 108 gf·cm
Rated Power: 1081 W

Motor Options4 variants

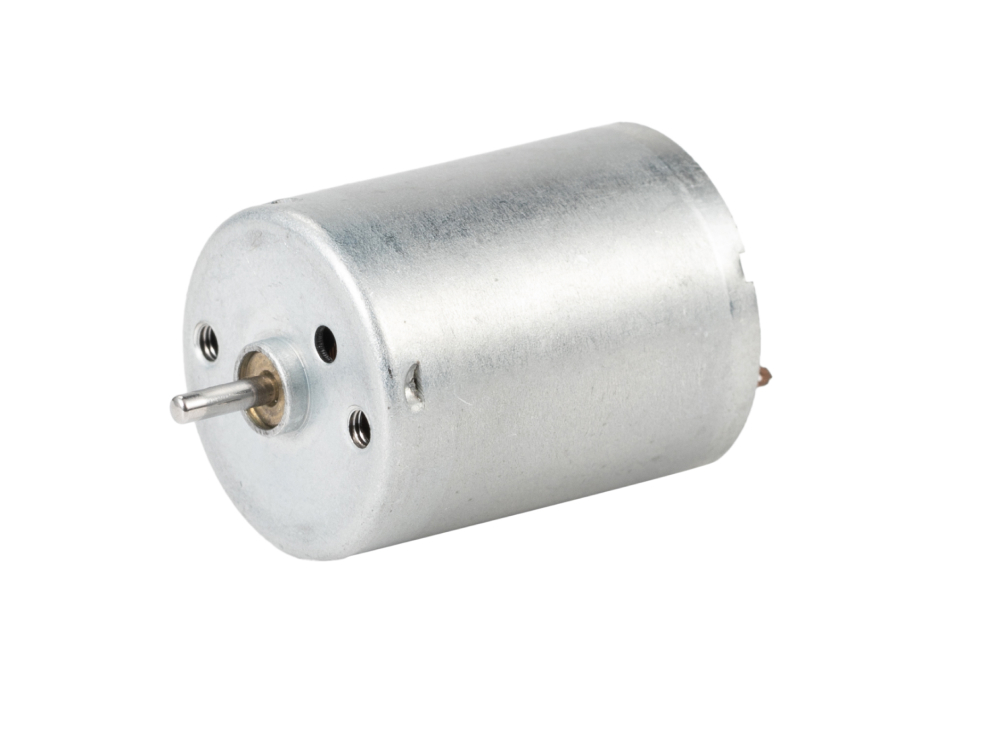

DC370 12V 4500 RPM

Gearbox Options11 variants

PG25 4:1

Request customization

Model & Specification Comparison

Motors 4 options

37012450 DC370 12V 4500 RPM In stock 99

Gearboxes 11 options

PG254000 PG25 4:1 In stock 99

Product specifications
Product Model	PG25370124500-4K
Gearbox Weight	99 g
Rated Voltage	12 V
No Load Speed	1,125 rpm
Rated Speed	975 rpm
No Load Current	33 mA
Rated Current	160 mA
Stall Current	1,000 mA
Rated Torque	108 gf·cm
Stall Torque	576 gf·cm
Rated Power	1081 W
Max Efficiency	67.500 %
Motor Diameter	25 mm
Gearbox Length	55.8 mm
Gear Ratio	4 :1
Number Of Gear Stages	1
Max Continuous Torque	3 gf·cm
Instantaneous Break Torque	9 gf·cm
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	300 hours
