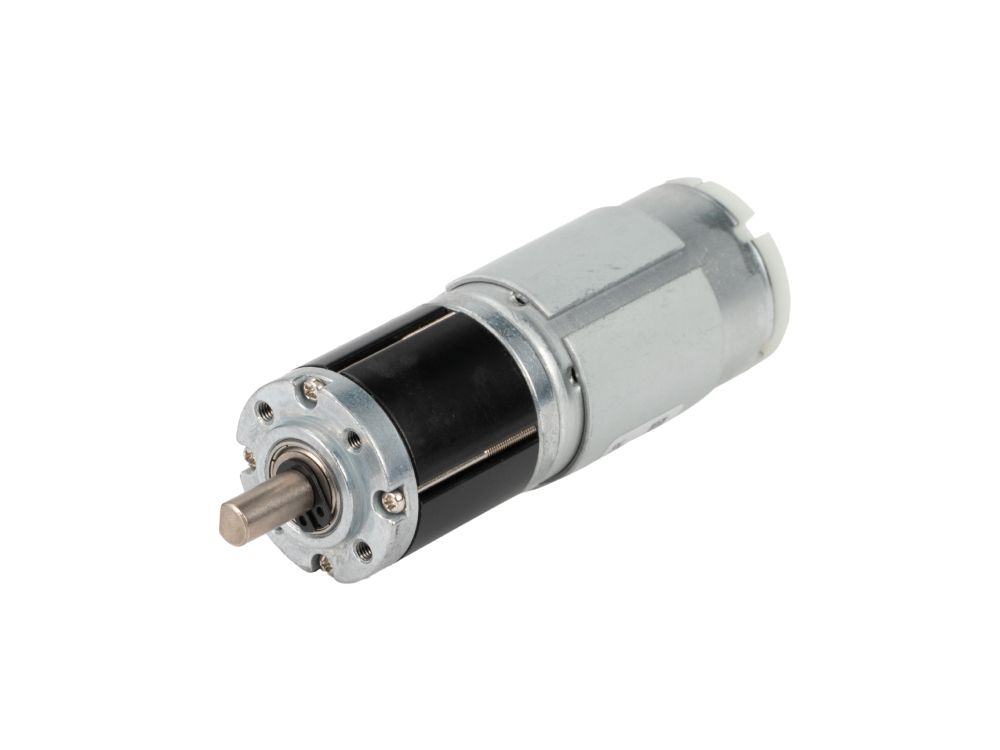

PG28395 Planetary Gear Motor

USD 19.98 MSRP

Key Data

Gearbox Weight: 170 g
Rated Voltage: 12 V
Rated Speed: 776 rpm
Rated Torque: 432 gf·cm
Rated Power: 3443 W

Motor Options4 variants

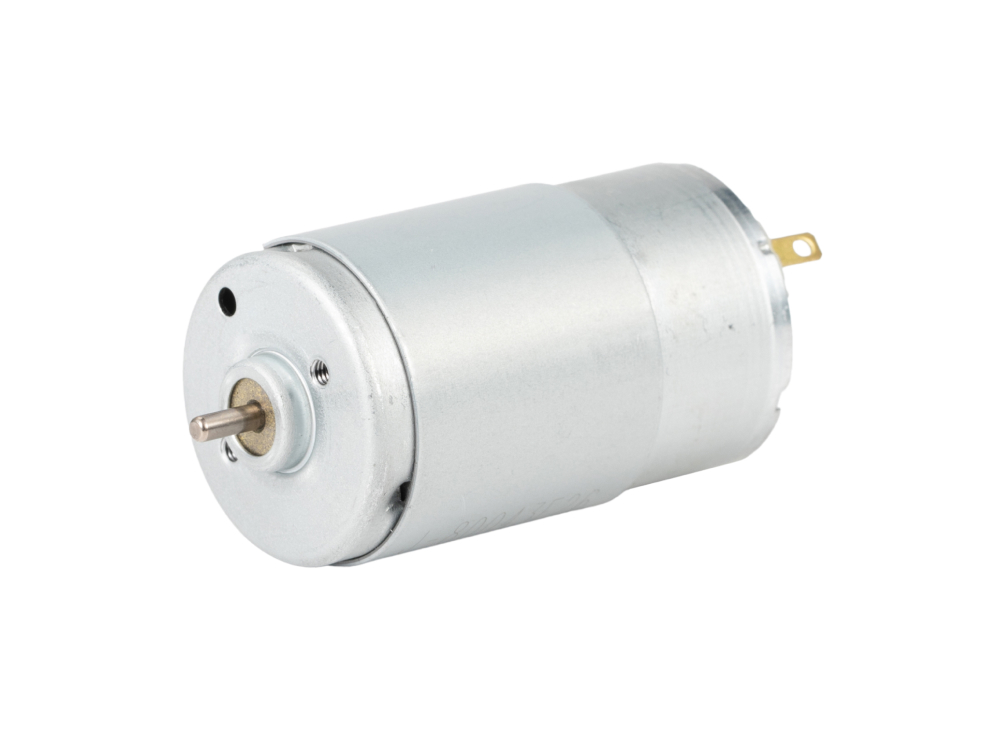

DC395 12V 4500 RPM

Gearbox Options11 variants

PG28 5:1

Request customization

Model & Specification Comparison

Motors 4 options

39512450 DC395 12V 4500 RPM In stock 99

Gearboxes 11 options

PG285000 PG28 5:1 In stock 99

Product specifications
Product Model	PG28395124500-5K
Gearbox Weight	170 g
Rated Voltage	12 V
No Load Speed	900 rpm
Rated Speed	776 rpm
No Load Current	110 mA
Rated Current	470 mA
Stall Current	2,650 mA
Rated Torque	432 gf·cm
Stall Torque	2925.65 gf·cm
Rated Power	3443 W
Max Efficiency	68.250 %
Motor Diameter	28 mm
Gearbox Length	72.4 mm
Gear Ratio	5 :1
Number Of Gear Stages	1
Max Continuous Torque	20 gf·cm
Instantaneous Break Torque	60 gf·cm
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	400 hours
