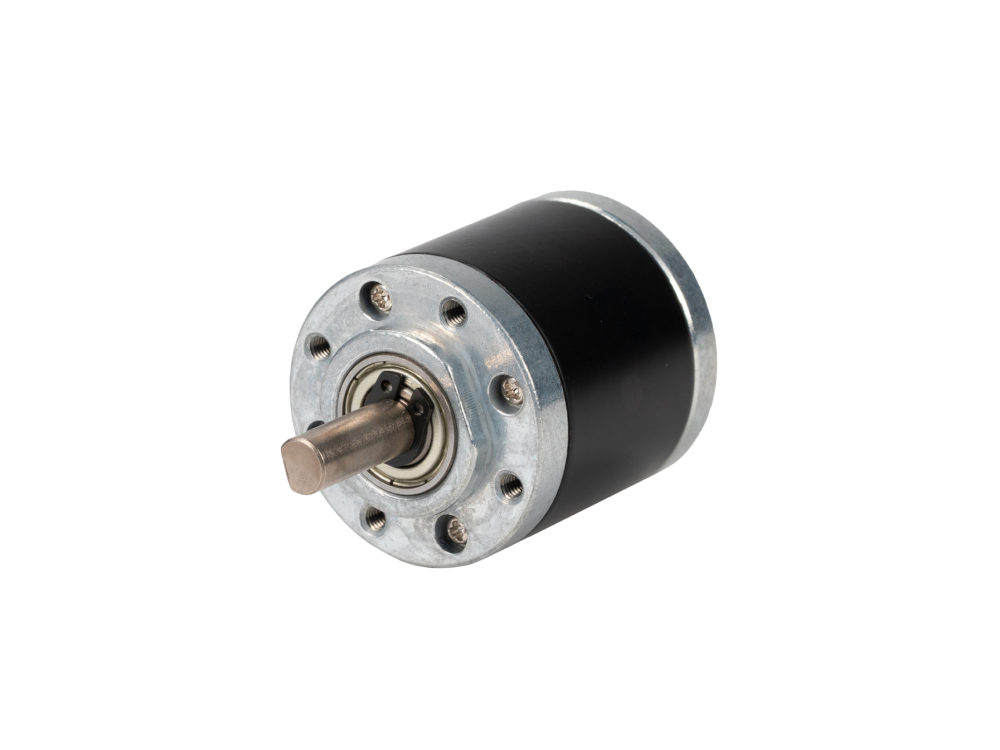

PG32528 Planetary Gear Motor

USD 19.98 MSRP

Key Data

Gearbox Weight: 167 g
Rated Voltage: 12 V
Rated Speed: 774 rpm
Rated Torque: 198 gf·cm
Rated Power: 1573 W

Motor Options4 variants

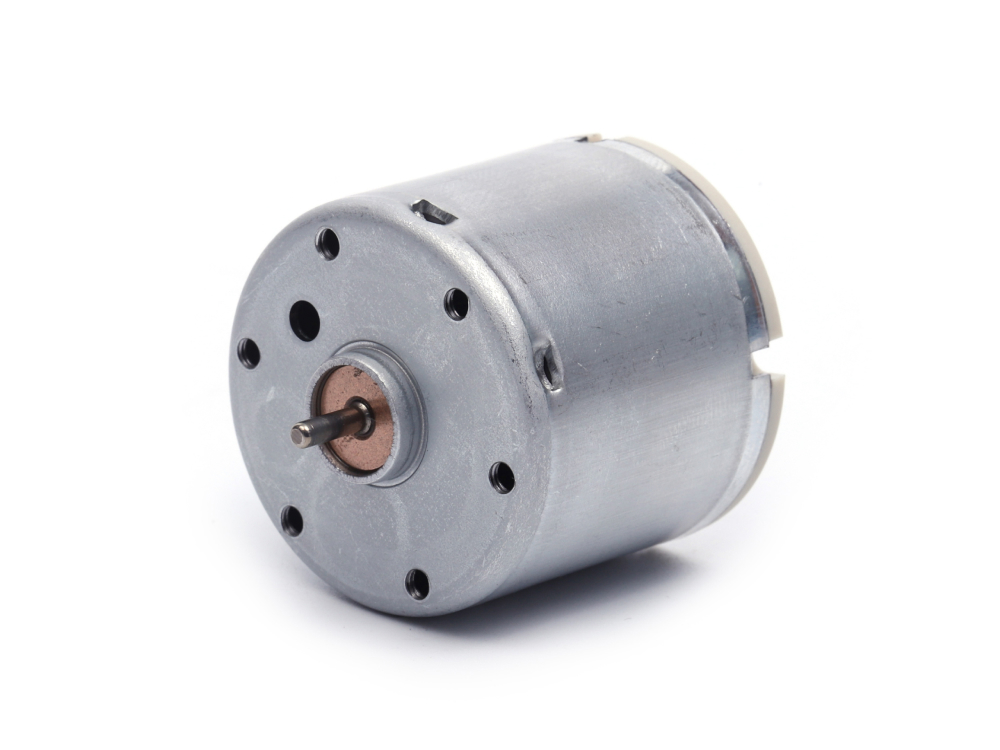

DC528 12V 4500 RPM

Gearbox Options12 variants

PG32 5:1

Request customization

Model & Specification Comparison

Motors 4 options

52812450 DC528 12V 4500 RPM In stock 99

Gearboxes 12 options

PG325000 PG32 5:1 In stock 99

Product specifications
Product Model	PG32528124500-5K
Gearbox Weight	167 g
Rated Voltage	12 V
No Load Speed	900 rpm
Rated Speed	774 rpm
No Load Current	80 mA
Rated Current	230 mA
Stall Current	1,360 mA
Rated Torque	198 gf·cm
Stall Torque	1,476 gf·cm
Rated Power	1573 W
Max Efficiency	64.800 %
Motor Diameter	32 mm
Gearbox Length	55 mm
Gear Ratio	5 :1
Number Of Gear Stages	1
Max Continuous Torque	100 gf·cm
Instantaneous Break Torque	300 gf·cm
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	300 hours
