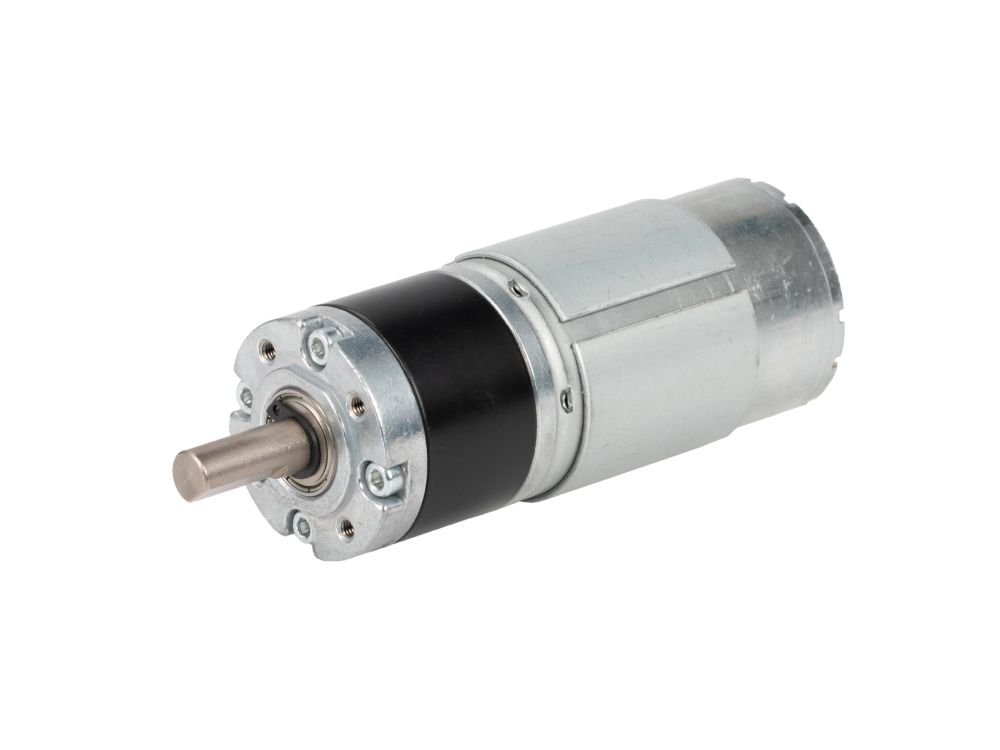

PG36555 Planetary Gear Motor

USD 23.58 MSRP

Key Data

Gearbox Weight: 375 g
Rated Voltage: 12 V
Rated Speed: 520 rpm
Rated Torque: 806 gf·cm
Rated Power: 4300 W

Motor Options6 variants

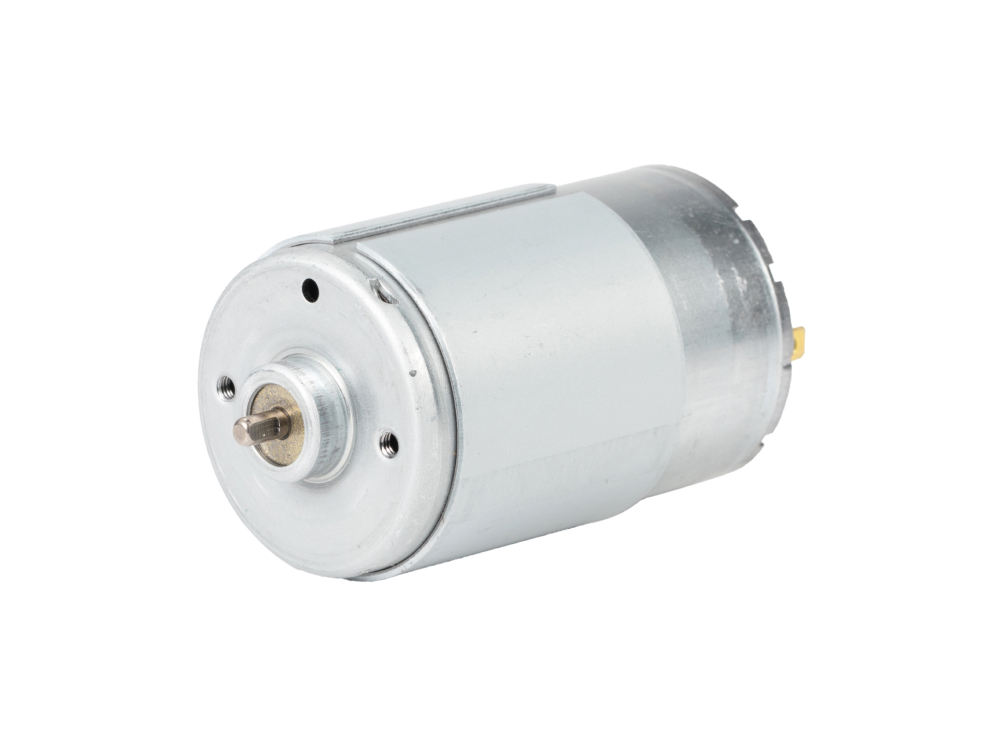

DC555 12V 3000 RPM

Gearbox Options14 variants

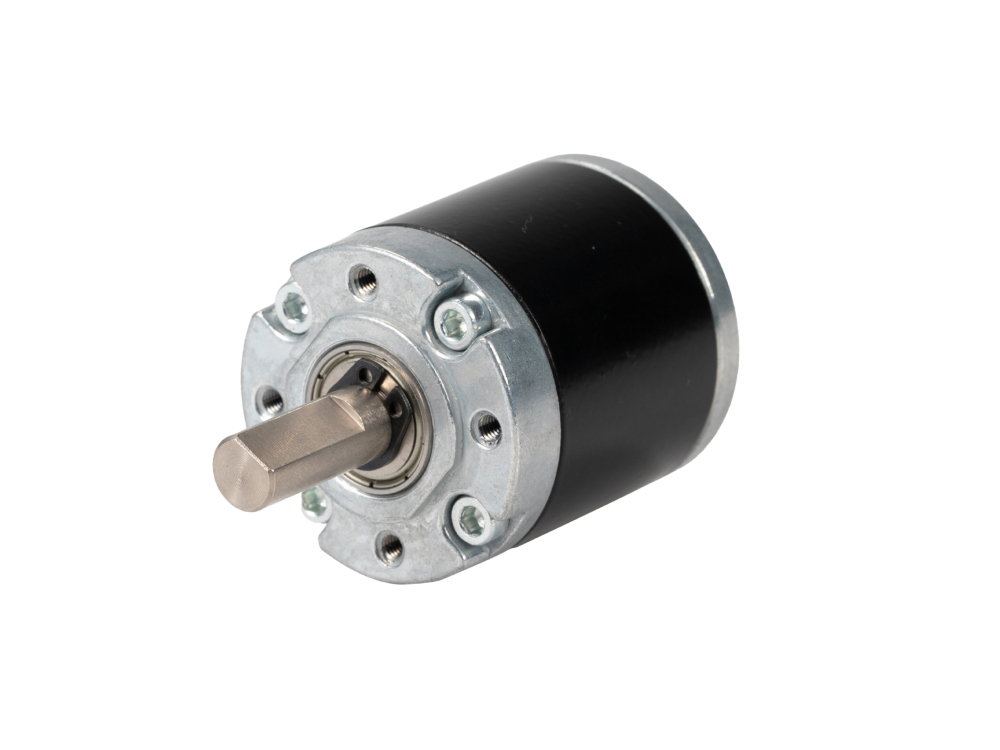

PG36 5:1

Request customization

Model & Specification Comparison

Motors 6 options

55512300 DC555 12V 3000 RPM In stock 99

Gearboxes 14 options

PG365000 PG36 5:1 In stock 99

Product specifications
Product Model	PG36555123000-5K
Gearbox Weight	375 g
Rated Voltage	12 V
No Load Speed	600 rpm
Rated Speed	520 rpm
No Load Current	180 mA
Rated Current	600 mA
Stall Current	3,100 mA
Rated Torque	806 gf·cm
Stall Torque	7,425 gf·cm
Rated Power	4300 W
Max Efficiency	64.800 %
Motor Diameter	36 mm
Gearbox Length	86.9 mm
Gear Ratio	5 :1
Number Of Gear Stages	1
Max Continuous Torque	20 gf·cm
Instantaneous Break Torque	60 gf·cm
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	600 hours
