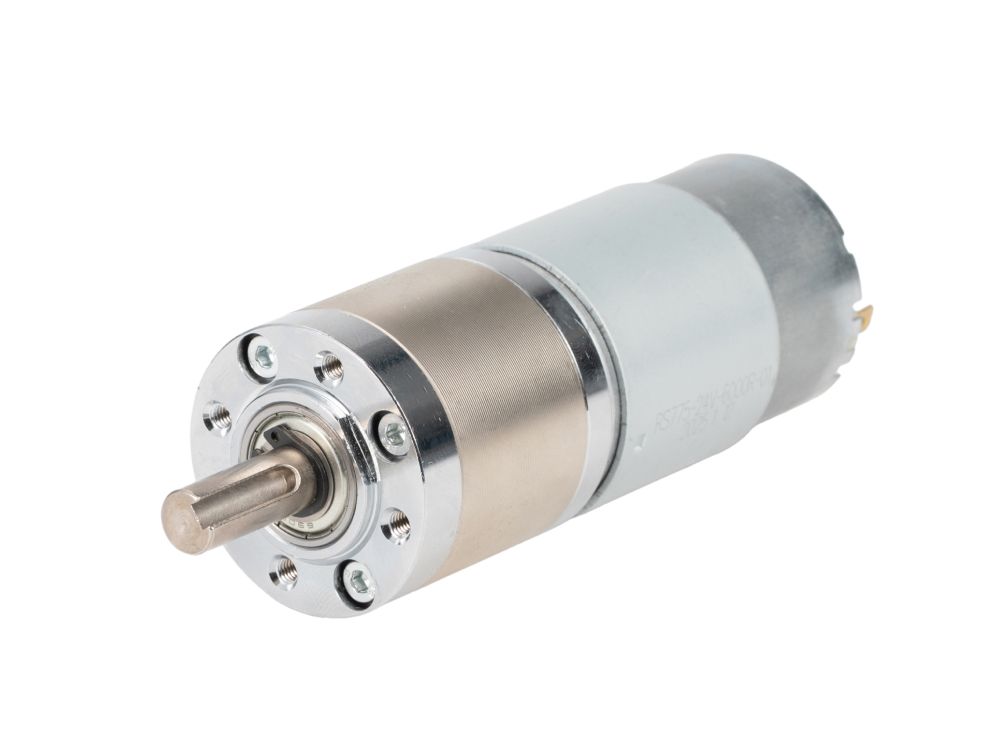

PG42775 Planetary Gear Motor

USD 33.98 MSRP

Key Data

Gearbox Weight: 597 g
Rated Voltage: 12 V
Rated Speed: 662 rpm
Rated Torque: 1166 gf·cm
Rated Power: 7924 W

Motor Options6 variants

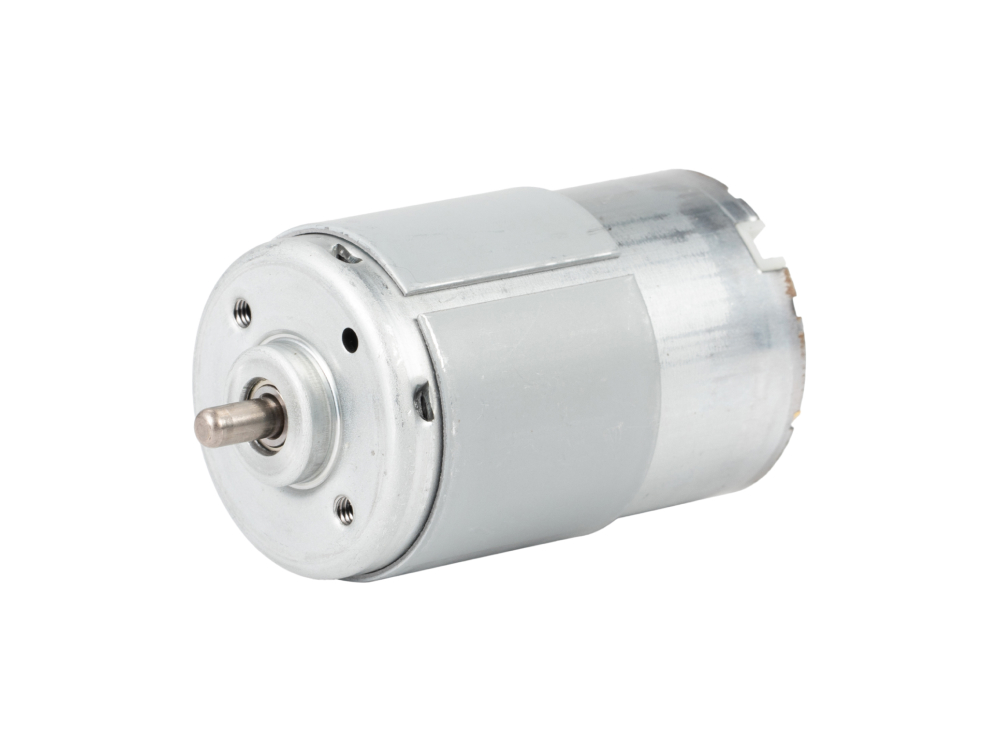

DC775 12V 3000 RPM

Gearbox Options13 variants

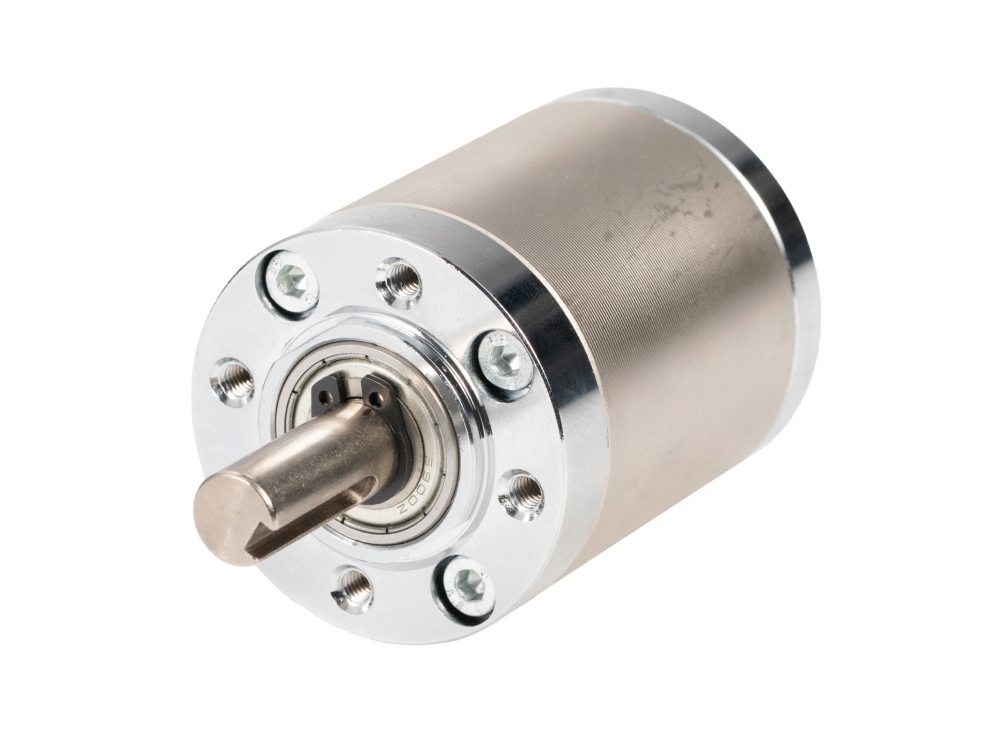

PG42 3.7:1

Request customization

Model & Specification Comparison

Motors 6 options

77512300 DC775 12V 3000 RPM In stock 99

Gearboxes 13 options

PG423700 PG42 3.7:1 In stock 99

Product specifications
Product Model	PG42775123000-3.7K
Gearbox Weight	597 g
Rated Voltage	12 V
No Load Speed	810.810811 rpm
Rated Speed	662 rpm
No Load Current	420 mA
Rated Current	1,200 mA
Stall Current	6,000 mA
Rated Torque	1166 gf·cm
Stall Torque	7592.4 gf·cm
Rated Power	7924 W
Max Efficiency	64.800 %
Motor Diameter	42 mm
Gearbox Length	97.8 mm
Gear Ratio	3.7 :1
Number Of Gear Stages	1
Max Continuous Torque	50 gf·cm
Instantaneous Break Torque	150 gf·cm
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	800 hours
Noise Level @ 30cm	53
