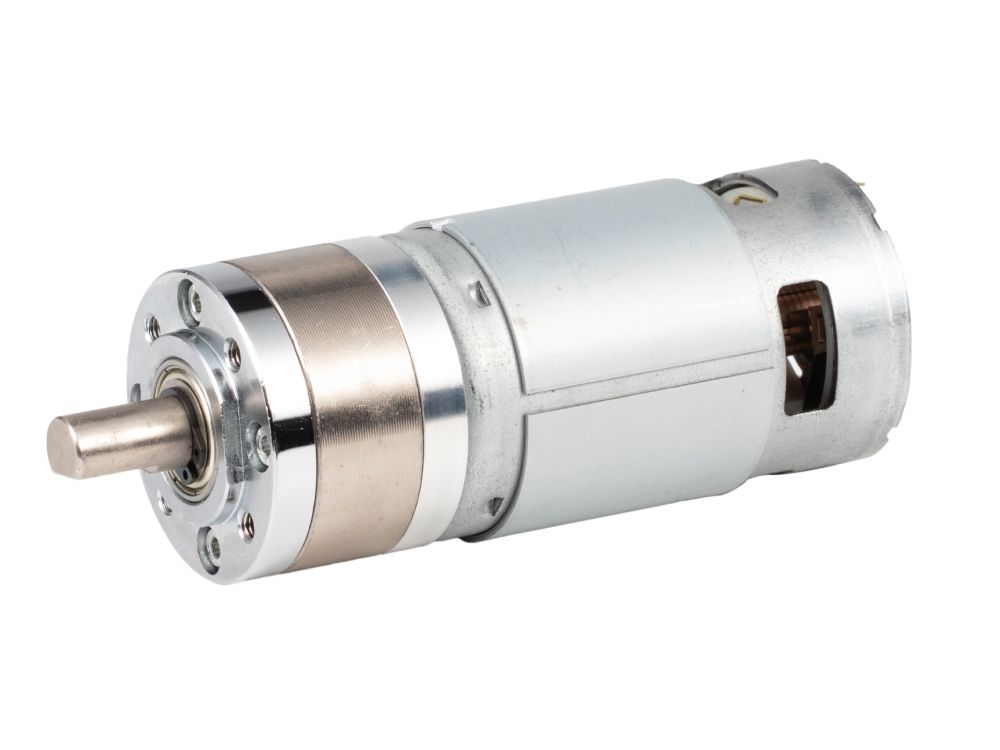

PG56997 Planetary Gear Motor

USD 53.98 MSRP

Key Data

Gearbox Weight: 1,106 g
Rated Voltage: 12 V
Rated Speed: 1130 rpm
Rated Torque: 3889 gf·cm
Rated Power: 45113 W

Motor Options4 variants

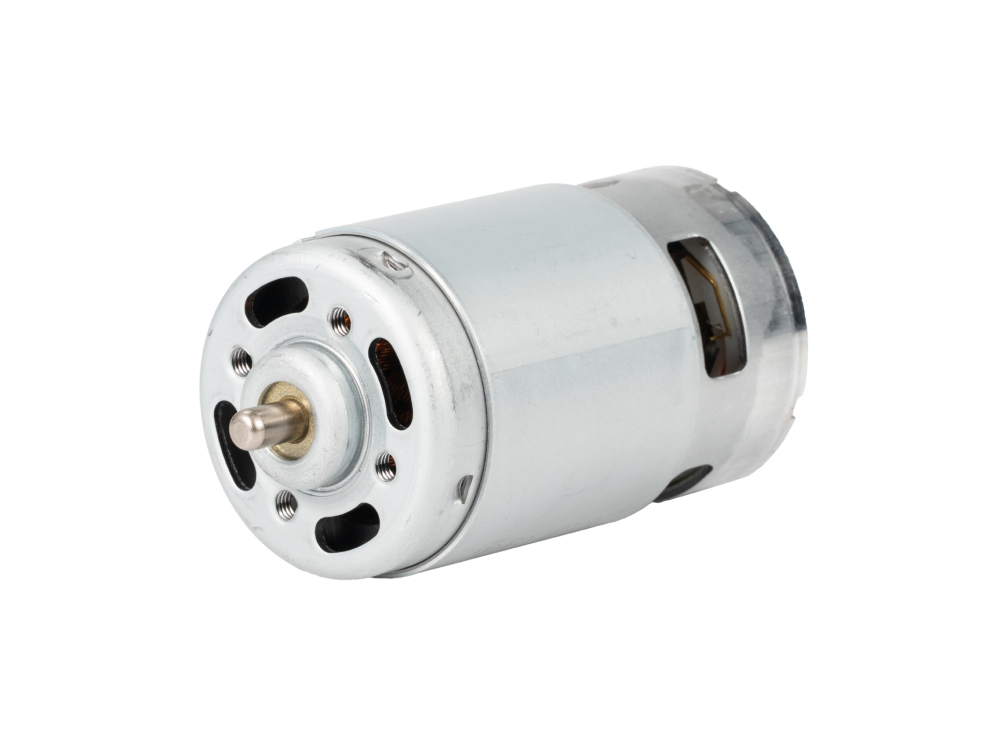

DC997 12V 4500 RPM

Gearbox Options14 variants

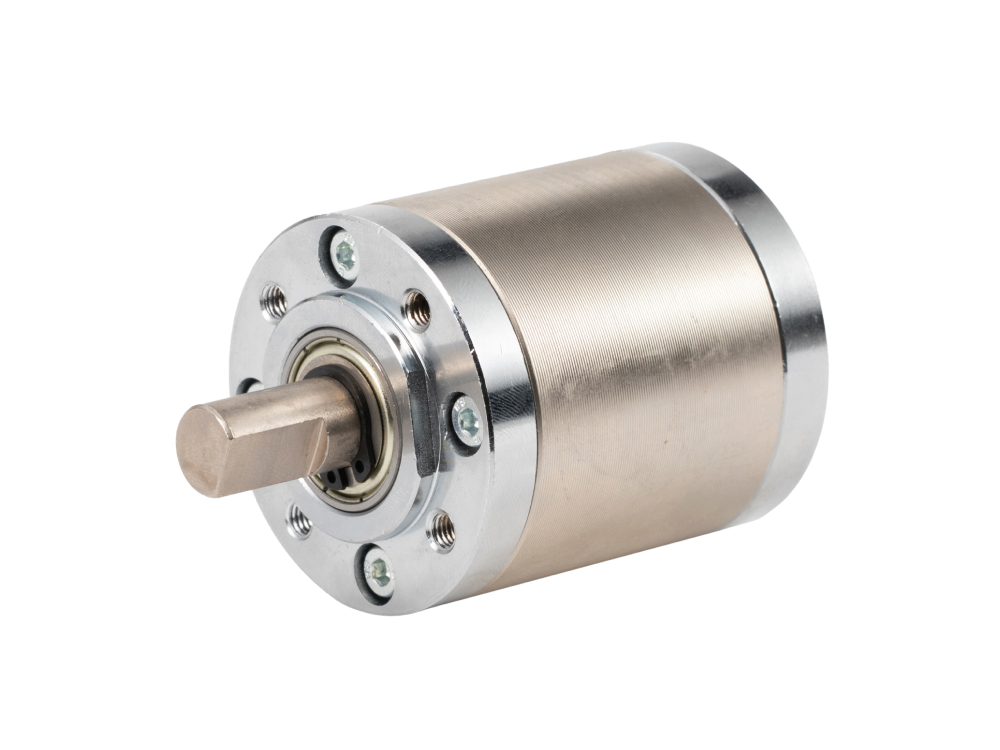

PG56 3.7:1

Request customization

Model & Specification Comparison

Motors 4 options

99712450 DC997 12V 4500 RPM In stock 99

Gearboxes 14 options

PG563700 PG56 3.7:1 In stock 99

Product specifications
Product Model	PG56997124500-3.7K
Gearbox Weight	1,106 g
Rated Voltage	12 V
No Load Speed	1216.216216 rpm
Rated Speed	1130 rpm
No Load Current	1,350 mA
Rated Current	5,400 mA
Stall Current	48,100 mA
Rated Torque	3889 gf·cm
Stall Torque	38,295 gf·cm
Rated Power	45113 W
Max Efficiency	64.800 %
Motor Diameter	56 mm
Gearbox Length	122.5 mm
Gear Ratio	3.7 :1
Number Of Gear Stages	1
Max Continuous Torque	100 gf·cm
Instantaneous Break Torque	300 gf·cm
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	1,000 hours
