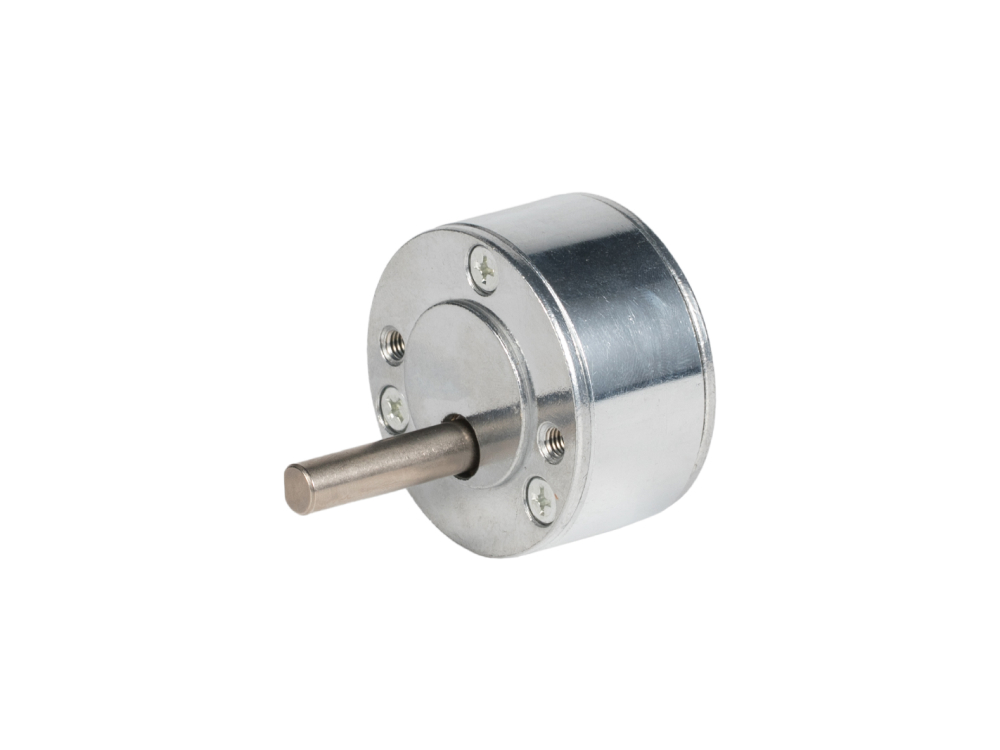

RG50555 DC Gearmotors - Round

USD 15.58 MSRP

Key Data

Gearbox Weight: 356 g
Rated Voltage: 12 V
Rated Speed: 347 rpm
Rated Torque: 1087 gf·cm
Rated Power: 4 W

Motor Options6 variants

DC555 12V 3000 RPM

Gearbox Options10 variants

RG50B 7.5:1

Request customization

Model & Specification Comparison

Motors 6 options

55512300 DC555 12V 3000 RPM In stock 99

Gearboxes 10 options

RG50B7500 RG50B 7.5:1 In stock 99

Product specifications
Product Model	RG50B555123000-
Gearbox Weight	356 g
Rated Voltage	12 V
No Load Speed	400 rpm
Rated Speed	347 rpm
No Load Current	180 mA
Rated Current	600 mA
Stall Current	3,100 mA
Rated Torque	1087 gf·cm
Stall Torque	10023.75 gf·cm
Rated Power	4 W
Max Efficiency	58.320 %
Motor Diameter	50 mm
Gearbox Length	83.4 mm
Gear Ratio	7.5 :1
Number Of Gear Stages	2
Max Continuous Torque	10 gf·cm
Instantaneous Break Torque	30 gf·cm
Backlash	2 °
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	600 hours
