Gearboxes
Spur Gearboxes - Round
RG50A

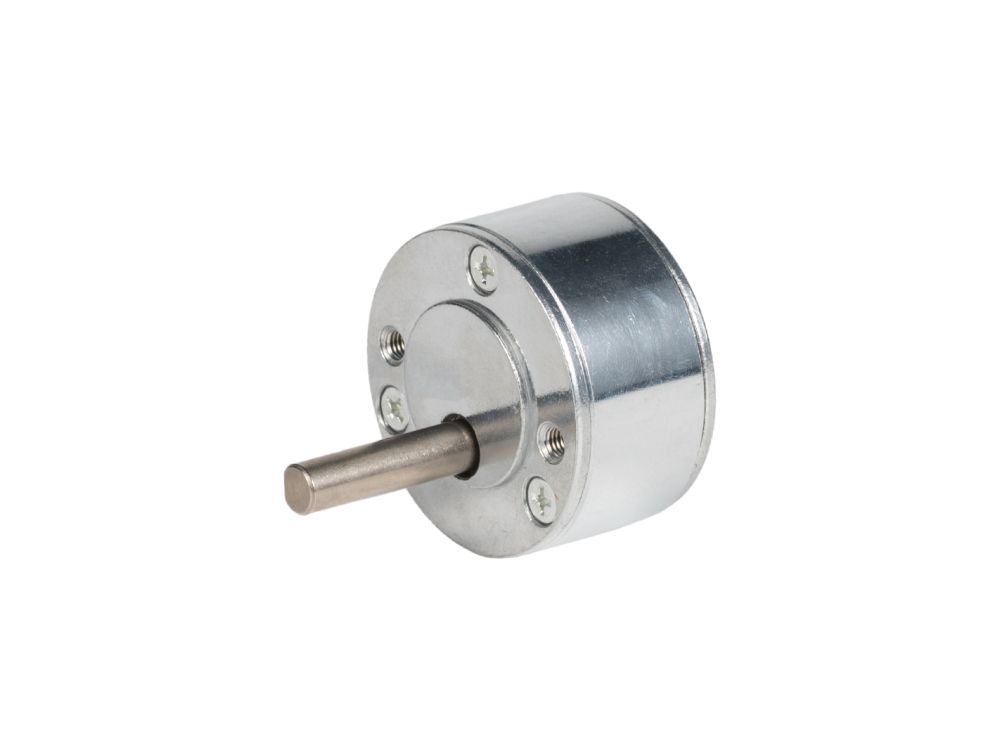

RG50A Spur Gearbox - Round
$10.99
MSRP
Key Data
Gear Ratio 7.2 :1
Max Continuous Torque 10 gf·cm
Breaking Torque 30 gf·cm
Gearbox Efficiency 81 %
Gearbox Weight 126 g
Gearbox Options10 variants
RG50A 7.2:1 Request customization
Model & Selection Model & Selection
Model & Specification Comparison
SKU Gearbox Type Gearbox Model Gear Ratio Number Of Gear Stages Gearbox Diameter Gearbox Length Max Continuous Torque Breaking Torque Gearbox Efficiency Gearbox Weight Shaft Diameter Pinion Hole Diameter Operating Temperature Range Gearbox Housing Material Gear Material Gear Design Output Shaft Bearing Lubricant In Gearbox Axial Play Radial Play Backlash Gear Module
RG50A7200 Spur Gearbox - Round RG50A 7.2 :1 2 50 mm 26.4 mm 10 gf·cm 30 gf·cm 81 % 126 g 8 mm φ3.17 mm -30 ~ 65 C Zinc Alloy (Die casting) Powder Metallurgy (Fe) / Plastics / Steel Helical Gear / Spur Gear Sleeve Bearing FUMIO 0.35 mm 0.05 mm 2 ° 0.5 / 0.6 / 0.8 M RG50A1330 Spur Gearbox - Round RG50A 13.3 :1 2 50 mm 26.4 mm 10 gf·cm 30 gf·cm 81 % 126 g 8 mm φ3.17 mm -30 ~ 65 C Zinc Alloy (Die casting) Powder Metallurgy (Fe) / Plastics / Steel Helical Gear / Spur Gear Sleeve Bearing FUMIO 0.35 mm 0.05 mm 2 ° 0.5 / 0.6 / 0.8 M RG50A2900 Spur Gearbox - Round RG50A 29 :1 3 50 mm 26.4 mm 10 gf·cm 30 gf·cm 73 % 126 g 8 mm φ3.17 mm -30 ~ 65 C Zinc Alloy (Die casting) Powder Metallurgy (Fe) / Plastics / Steel Helical Gear / Spur Gear Sleeve Bearing FUMIO 0.35 mm 0.05 mm 2 ° 0.5 / 0.6 / 0.8 M RG50A5300 Spur Gearbox - Round RG50A 53 :1 3 50 mm 26.4 mm 10 gf·cm 30 gf·cm 73 % 126 g 8 mm φ3.17 mm -30 ~ 65 C Zinc Alloy (Die casting) Powder Metallurgy (Fe) / Plastics / Steel Helical Gear / Spur Gear Sleeve Bearing FUMIO 0.35 mm 0.05 mm 2 ° 0.5 / 0.6 / 0.8 M RG50A1160 Spur Gearbox - Round RG50A 116 :1 4 50 mm 30.2 mm 30 gf·cm 75 gf·cm 65 % 126 g 8 mm φ3.17 mm -30 ~ 65 C Zinc Alloy (Die casting) Powder Metallurgy (Fe) / Plastics / Steel Helical Gear / Spur Gear Sleeve Bearing FUMIO 0.35 mm 0.05 mm 2 ° 0.5 / 0.6 / 0.8 M RG50A2130 Spur Gearbox - Round RG50A 213 :1 4 50 mm 30.2 mm 30 gf·cm 75 gf·cm 65 % 126 g 8 mm φ3.17 mm -30 ~ 65 C Zinc Alloy (Die casting) Powder Metallurgy (Fe) / Plastics / Steel Helical Gear / Spur Gear Sleeve Bearing FUMIO 0.35 mm 0.05 mm 2 ° 0.5 / 0.6 / 0.8 M RG50A4640 Spur Gearbox - Round RG50A 464 :1 5 50 mm 33.9 mm 30 gf·cm 75 gf·cm 59 % 126 g 8 mm φ3.17 mm -30 ~ 65 C Zinc Alloy (Die casting) Powder Metallurgy (Fe) / Plastics / Steel Helical Gear / Spur Gear Sleeve Bearing FUMIO 0.35 mm 0.05 mm 2 ° 0.5 / 0.6 / 0.8 M RG50A8530 Spur Gearbox - Round RG50A 853 :1 5 50 mm 33.9 mm 30 gf·cm 75 gf·cm 59 % 126 g 8 mm φ3.17 mm -30 ~ 65 C Zinc Alloy (Die casting) Powder Metallurgy (Fe) / Plastics / Steel Helical Gear / Spur Gear Sleeve Bearing FUMIO 0.35 mm 0.05 mm 2 ° 0.5 / 0.6 / 0.8 M RG50A1856 Spur Gearbox - Round RG50A 1,856 :1 6 50 mm 37.7 mm 30 gf·cm 75 gf·cm 53 % 126 g 8 mm φ3.17 mm -30 ~ 65 C Zinc Alloy (Die casting) Powder Metallurgy (Fe) / Plastics / Steel Helical Gear / Spur Gear Sleeve Bearing FUMIO 0.35 mm 0.05 mm 2 ° 0.5 / 0.6 / 0.8 M RG50A3415 Spur Gearbox - Round RG50A 3,415 :1 6 50 mm 37.7 mm 30 gf·cm 75 gf·cm 53 % 126 g 8 mm φ3.17 mm -30 ~ 65 C Zinc Alloy (Die casting) Powder Metallurgy (Fe) / Plastics / Steel Helical Gear / Spur Gear Sleeve Bearing FUMIO 0.35 mm 0.05 mm 2 ° 0.5 / 0.6 / 0.8 M
Technical Specifications Technical Specifications Gearbox Type Spur Gearbox - Round Gearbox Model RG50A Gear Ratio 7.2 :1 Number Of Gear Stages 2 Gearbox Diameter 50 mm Gearbox Length 26.4 mm Max Continuous Torque 10 gf·cm Breaking Torque 30 gf·cm Gearbox Efficiency 81 % Gearbox Weight 126 g Shaft Diameter 8 mm Pinion Hole Diameter φ3.17 mm Operating Temperature Range -30 ~ 65 C Gearbox Housing Material Zinc Alloy (Die casting) Gear Material Powder Metallurgy (Fe) / Plastics / Steel Gear Design Helical Gear / Spur Gear Output Shaft Bearing Sleeve Bearing Lubricant In Gearbox FUMIO Axial Play 0.35 mm Radial Play 0.05 mm Backlash 2 ° Gear Module 0.5 / 0.6 / 0.8 M
