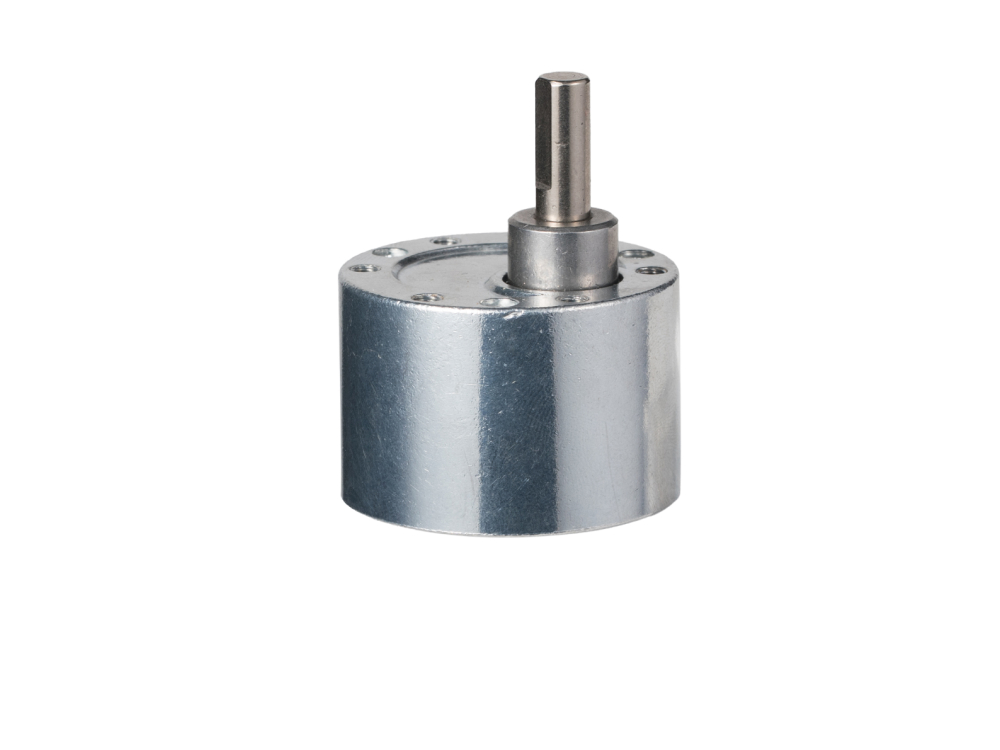

SG37528 DC Gearmotors - Round

USD 9.98 MSRP

Key Data

Gearbox Weight: 135 g
Rated Voltage: 12 V
Rated Speed: 387 rpm
Rated Torque: 356 gf·cm
Rated Power: 1 W

Motor Options4 variants

DC528 12V 4500 RPM

Gearbox Options30 variants

SG37A 10:1

Request customization

Model & Specification Comparison

Motors 4 options

52812450 DC528 12V 4500 RPM In stock 99

Gearboxes 30 options

SG37A1000 SG37A 10:1 In stock 99

Product specifications
Product Model	SG37528124500-
Gearbox Weight	135 g
Rated Voltage	12 V
No Load Speed	450 rpm
Rated Speed	387 rpm
No Load Current	80 mA
Rated Current	230 mA
Stall Current	1,360 mA
Rated Torque	356 gf·cm
Stall Torque	2656.8 gf·cm
Rated Power	1 W
Max Efficiency	58.320 %
Motor Diameter	37 mm
Gearbox Length	51.6 mm
Gear Ratio	10 :1
Number Of Gear Stages	2
Max Continuous Torque	1 gf·cm
Instantaneous Break Torque	3 gf·cm
Backlash	2 °
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	300 hours
