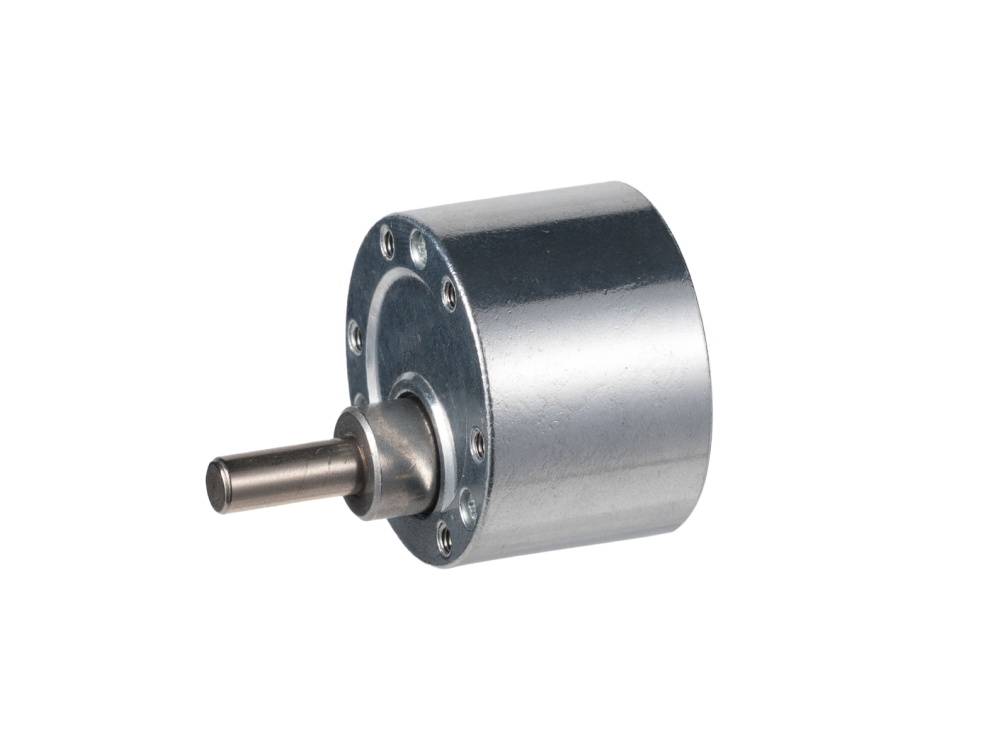

SG37555 DC Gearmotors - Round

USD 10.58 MSRP

Key Data

Gearbox Weight: 294 g
Rated Voltage: 12 V
Rated Speed: 260 rpm
Rated Torque: 1450 gf·cm
Rated Power: 4 W

Motor Options6 variants

DC555 12V 3000 RPM

Gearbox Options16 variants

SG37B 10:1

Request customization

Model & Specification Comparison

Motors 6 options

55512300 DC555 12V 3000 RPM In stock 99

Gearboxes 16 options

SG37B1000 SG37B 10:1 In stock 99

Product specifications
Product Model	SG37555123000-
Gearbox Weight	294 g
Rated Voltage	12 V
No Load Speed	300 rpm
Rated Speed	260 rpm
No Load Current	180 mA
Rated Current	600 mA
Stall Current	3,100 mA
Rated Torque	1450 gf·cm
Stall Torque	13,365 gf·cm
Rated Power	4 W
Max Efficiency	58.320 %
Motor Diameter	37 mm
Gearbox Length	80.5 mm
Gear Ratio	10 :1
Number Of Gear Stages	2
Max Continuous Torque	1 gf·cm
Instantaneous Break Torque	3 gf·cm
Backlash	2 °
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	600 hours
