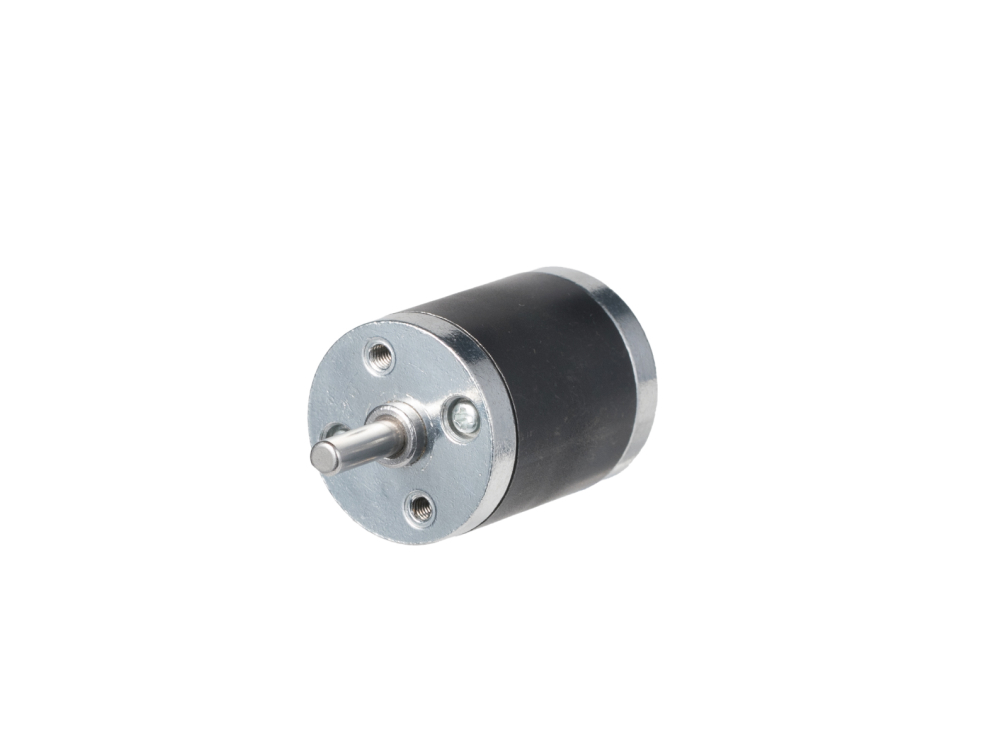

SR25370 DC Gearmotors - Round

USD 7.98 MSRP

Key Data

Gearbox Weight: 82 g
Rated Voltage: 12 V
Rated Speed: 488 rpm
Rated Torque: 194 gf·cm
Rated Power: 1 W

Motor Options4 variants

DC370 12V 4500 RPM

Gearbox Options12 variants

SR25 8:1

Request customization

Model & Specification Comparison

Motors 4 options

37012450 DC370 12V 4500 RPM In stock 99

Gearboxes 12 options

SR2580000 SR25 8:1 In stock 99

Product specifications
Product Model	SR25370124500-
Gearbox Weight	82 g
Rated Voltage	12 V
No Load Speed	562.5 rpm
Rated Speed	488 rpm
No Load Current	33 mA
Rated Current	160 mA
Stall Current	1,000 mA
Rated Torque	194 gf·cm
Stall Torque	1036.8 gf·cm
Rated Power	1 W
Max Efficiency	60.750 %
Motor Diameter	25 mm
Gearbox Length	54.3 mm
Gear Ratio	8 :1
Number Of Gear Stages	3
Max Continuous Torque	0.3 gf·cm
Instantaneous Break Torque	0.9 gf·cm
Backlash	2 °
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	300 hours
