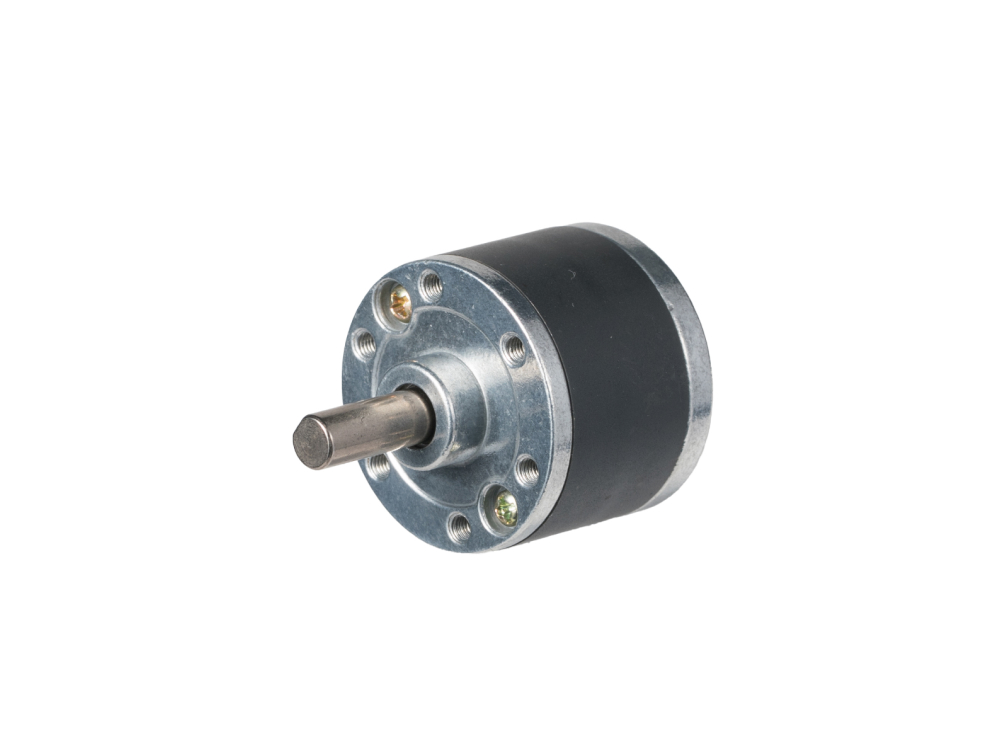

SR28395 DC Gearmotors - Round

USD 9.48 MSRP

Key Data

Gearbox Weight: 136 g
Rated Voltage: 12 V
Rated Speed: 485 rpm
Rated Torque: 616 gf·cm
Rated Power: 3 W

Motor Options4 variants

DC395 12V 4500 RPM

Gearbox Options7 variants

SR28 8:1

Request customization

Model & Specification Comparison

Motors 4 options

39512450 DC395 12V 4500 RPM In stock 99

Gearboxes 7 options

SR2880000 SR28 8:1 In stock 99

Product specifications
Product Model	SR28395124500-
Gearbox Weight	136 g
Rated Voltage	12 V
No Load Speed	562.5 rpm
Rated Speed	485 rpm
No Load Current	110 mA
Rated Current	470 mA
Stall Current	2,650 mA
Rated Torque	616 gf·cm
Stall Torque	4166.64 gf·cm
Rated Power	3 W
Max Efficiency	60.750 %
Motor Diameter	28 mm
Gearbox Length	69 mm
Gear Ratio	8 :1
Number Of Gear Stages	3
Max Continuous Torque	0.5 gf·cm
Instantaneous Break Torque	1.5 gf·cm
Backlash	2 °
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	400 hours
