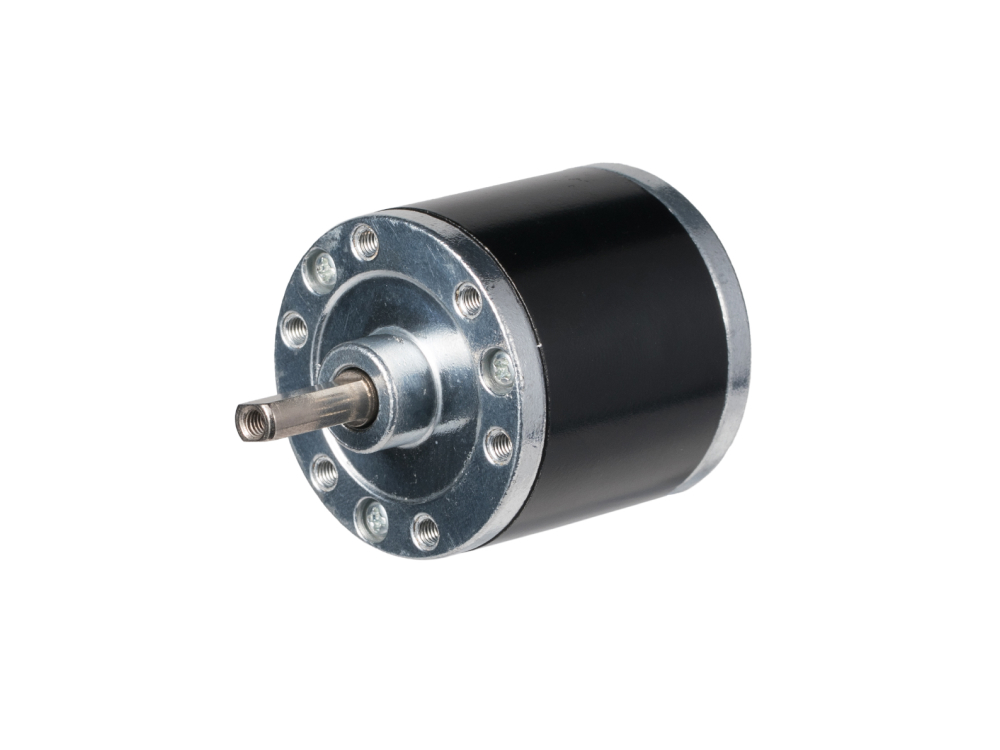

SR37555 DC Gearmotors - Round

USD 10.58 MSRP

Key Data

Gearbox Weight: 338 g
Rated Voltage: 12 V
Rated Speed: 274 rpm
Rated Torque: 1241 gf·cm
Rated Power: 4 W

Motor Options6 variants

DC555 12V 3000 RPM

Gearbox Options14 variants

SR37 9.5:1

Request customization

Model & Specification Comparison

Motors 6 options

55512300 DC555 12V 3000 RPM In stock 99

Gearboxes 14 options

SR3795000 SR37 9.5:1 In stock 99

Product specifications
Product Model	SR37555123000-
Gearbox Weight	338 g
Rated Voltage	12 V
No Load Speed	315.789474 rpm
Rated Speed	274 rpm
No Load Current	180 mA
Rated Current	600 mA
Stall Current	3,100 mA
Rated Torque	1241 gf·cm
Stall Torque	11442.75 gf·cm
Rated Power	4 W
Max Efficiency	52.560 %
Motor Diameter	37 mm
Gearbox Length	87.5 mm
Gear Ratio	9.5 :1
Number Of Gear Stages	3
Max Continuous Torque	2 gf·cm
Instantaneous Break Torque	6 gf·cm
Backlash	2 °
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	600 hours
