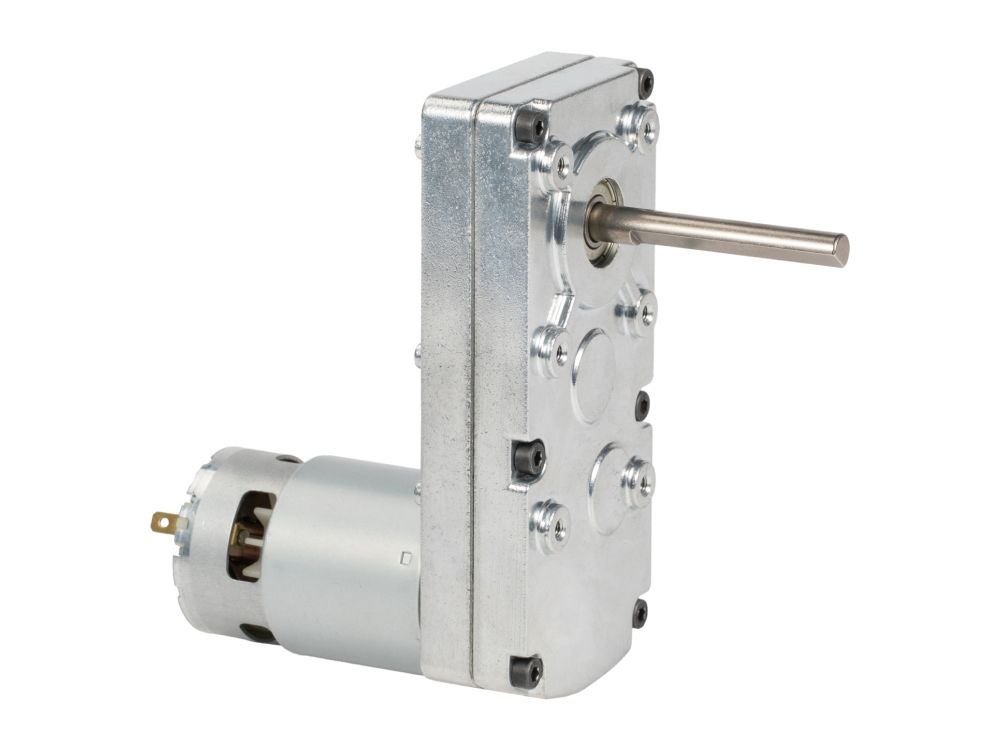

TA775 DC Gearmotors - Flat

USD 27.98 MSRP

Key Data

Gearbox Weight: 790 g
Rated Voltage: 12 V
Rated Speed: 70 rpm
Rated Torque: 9923 gf·cm
Rated Power: 7131 W

Motor Options6 variants

DC775 12V 3000 RPM

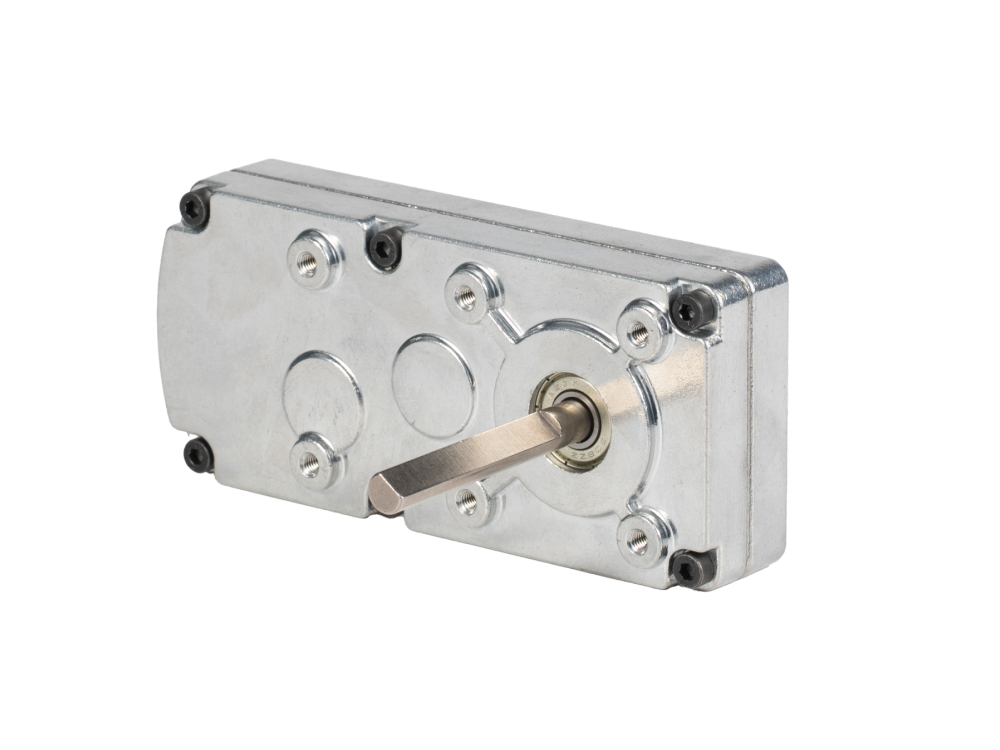

Gearbox Options6 variants

TA 35:1

Request customization

Model & Specification Comparison

Motors 6 options

77512300 DC775 12V 3000 RPM In stock 99

Gearboxes 6 options

TA3500 TA 35:1 In stock 99

Product specifications
Product Model	TA775123000-
Gearbox Weight	790 g
Rated Voltage	12 V
No Load Speed	85.714286 rpm
Rated Speed	70 rpm
No Load Current	420 mA
Rated Current	1,200 mA
Stall Current	6,000 mA
Rated Torque	9923 gf·cm
Stall Torque	64,638 gf·cm
Rated Power	7131 W
Max Efficiency	58.320 %
Gearbox Length	199 mm
Gear Ratio	35 :1
Number Of Gear Stages	3
Max Continuous Torque	150 gf·cm
Instantaneous Break Torque	500 gf·cm
Backlash	3 °
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	800 hours
Noise Level @ 30cm	53
