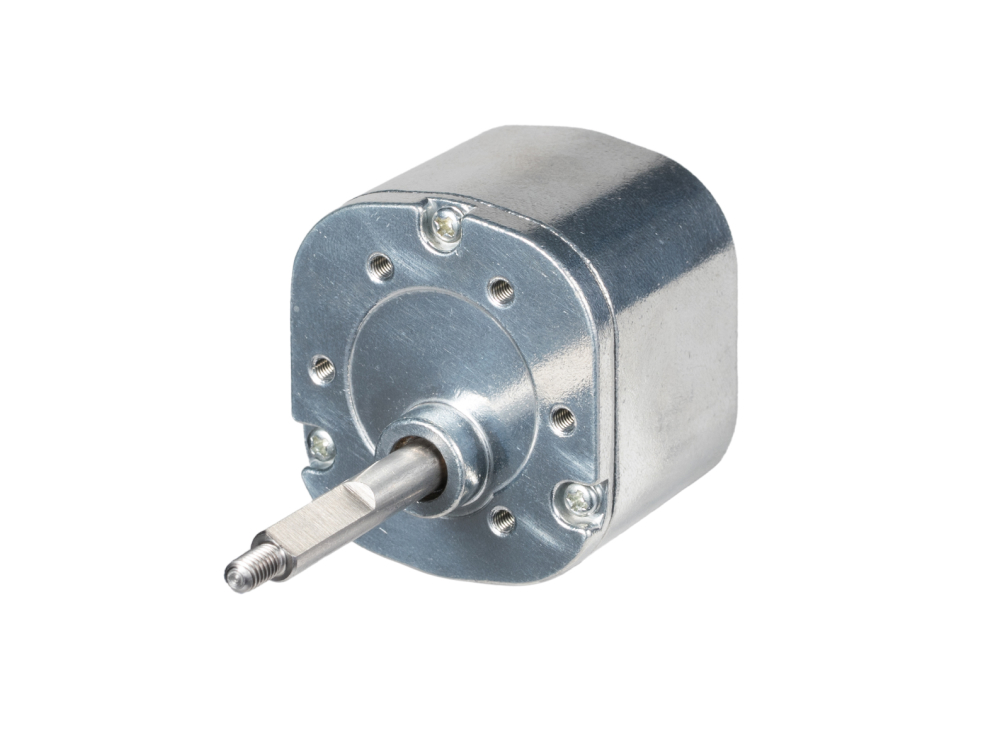

TG40555 DC Gearmotors - Round

USD 14.58 MSRP

Key Data

Rated Voltage: 12 V
Rated Speed: 260 rpm
Rated Torque: 1450 gf·cm
Rated Power: 4 W

Motor Options6 variants

DC555 12V 3000 RPM

Gearbox Options13 variants

TG40 10:1

Request customization

Model & Specification Comparison

Motors 6 options

55512300 DC555 12V 3000 RPM In stock 99

Gearboxes 13 options

TG4010000 TG40 10:1 In stock 99

Product specifications
Product Model	TG40555123000-
Rated Voltage	12 V
No Load Speed	300 rpm
Rated Speed	260 rpm
No Load Current	180 mA
Rated Current	600 mA
Stall Current	3,100 mA
Rated Torque	1450 gf·cm
Stall Torque	13,365 gf·cm
Rated Power	4 W
Max Efficiency	58.320 %
Motor Diameter	40 mm
Gearbox Length	89 mm
Gear Ratio	10 :1
Number Of Gear Stages	3
Max Continuous Torque	3 gf·cm
Instantaneous Break Torque	9 gf·cm
Backlash	2 °
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	600 hours
