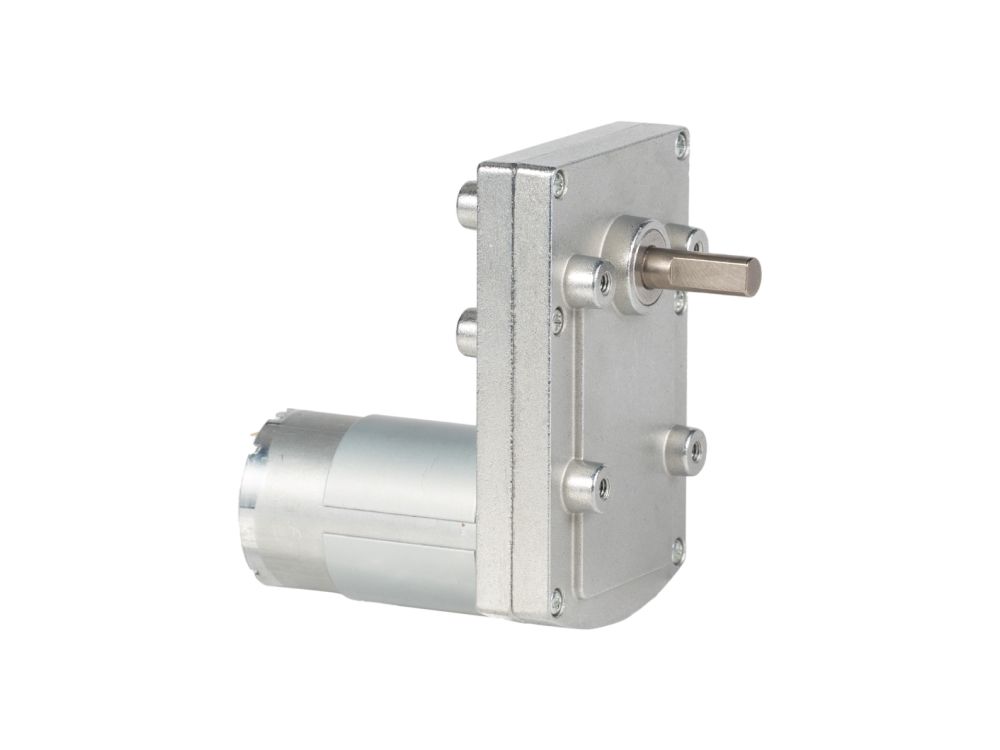

TT555 DC Gearmotors - Flat

USD 18.58 MSRP

Key Data

Gearbox Weight: 551 g
Rated Voltage: 12 V
Rated Speed: 87 rpm
Rated Torque: 3920 gf·cm
Rated Power: 3488 W

Motor Options6 variants

DC555 12V 3000 RPM

Gearbox Options11 variants

TT 36:1

Request customization

Model & Specification Comparison

Motors 6 options

55512300 DC555 12V 3000 RPM In stock 99

Gearboxes 11 options

TT3600 TT 36:1 In stock 99

Product specifications
Product Model	TT555123000-
Gearbox Weight	551 g
Rated Voltage	12 V
No Load Speed	100 rpm
Rated Speed	87 rpm
No Load Current	180 mA
Rated Current	600 mA
Stall Current	3,100 mA
Rated Torque	3920 gf·cm
Stall Torque	36,135 gf·cm
Rated Power	3488 W
Max Efficiency	52.560 %
Gearbox Length	152 mm
Gear Ratio	30 :1
Number Of Gear Stages	3
Max Continuous Torque	3 gf·cm
Instantaneous Break Torque	9 gf·cm
Backlash	3 °
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	600 hours
