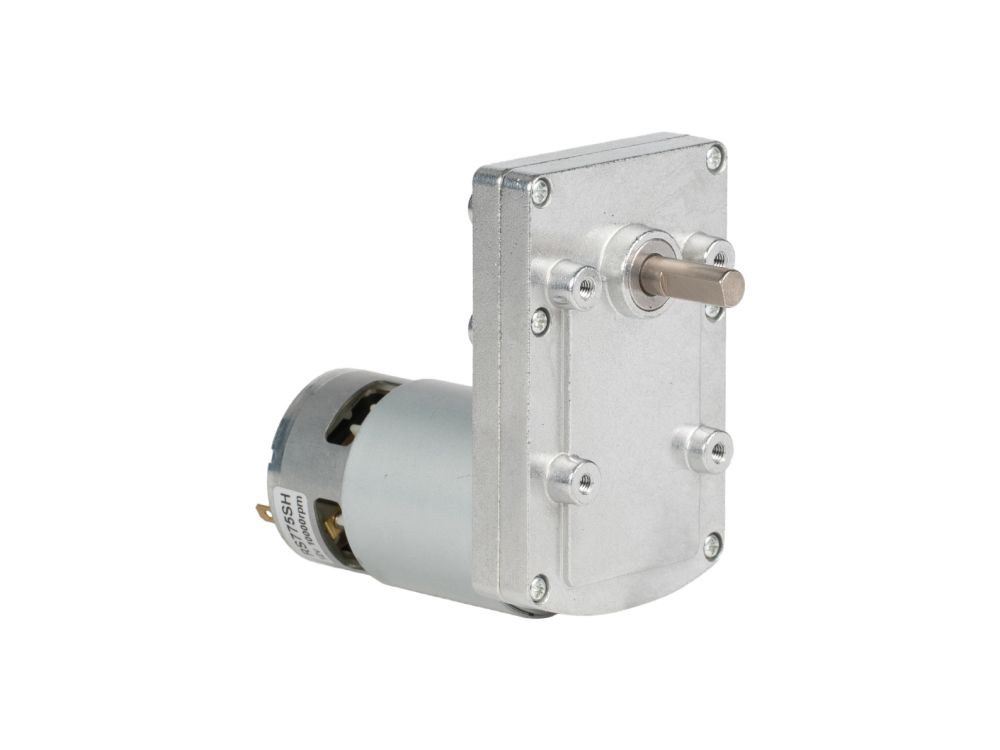

TT775 DC Gearmotors - Flat

USD 19.98 MSRP

Key Data

Gearbox Weight: 668 g
Rated Voltage: 12 V
Rated Speed: 82 rpm
Rated Torque: 7,665 gf·cm
Rated Power: 6427 W

Motor Options6 variants

DC775 12V 3000 RPM

Gearbox Options11 variants

TT 36:1

Request customization

Model & Specification Comparison

Motors 6 options

77512300 DC775 12V 3000 RPM In stock 99

Gearboxes 11 options

TT3600 TT 36:1 In stock 99

Product specifications
Product Model	TT775123000-
Gearbox Weight	668 g
Rated Voltage	12 V
No Load Speed	100 rpm
Rated Speed	82 rpm
No Load Current	420 mA
Rated Current	1,200 mA
Stall Current	6,000 mA
Rated Torque	7,665 gf·cm
Stall Torque	49,932 gf·cm
Rated Power	6427 W
Max Efficiency	52.560 %
Gearbox Length	161 mm
Gear Ratio	30 :1
Number Of Gear Stages	3
Max Continuous Torque	3 gf·cm
Instantaneous Break Torque	9 gf·cm
Backlash	3 °
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	800 hours
Noise Level @ 30cm	53
