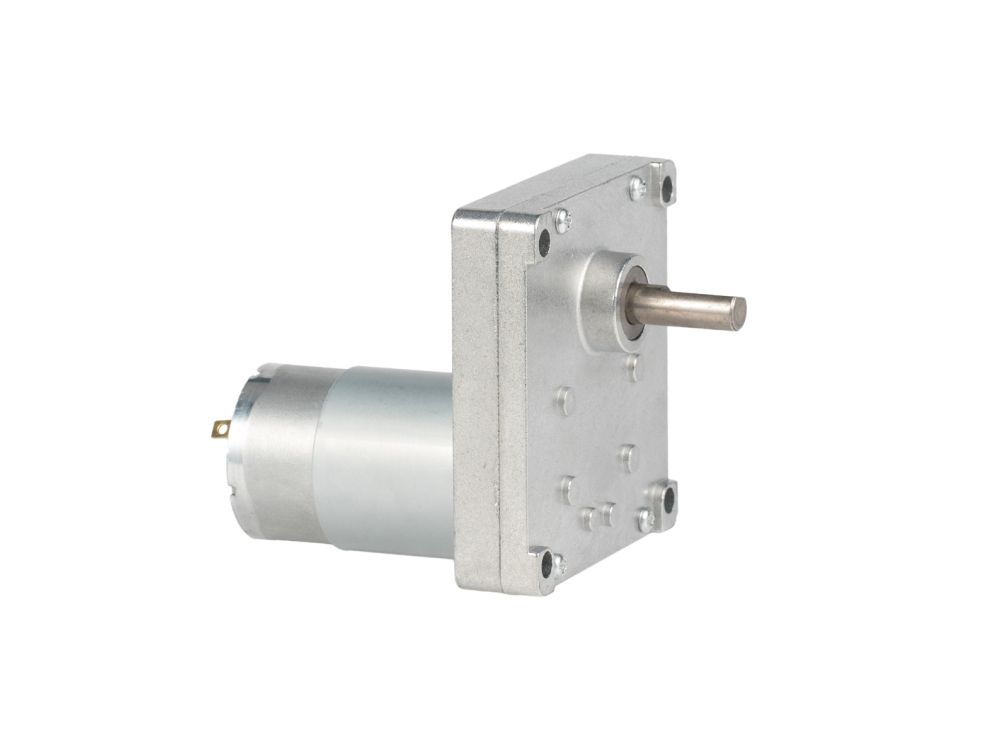

VF555 DC Gearmotors - Flat

USD 14.58 MSRP

Key Data

Gearbox Weight: 500 g
Rated Voltage: 12 V
Rated Speed: 72 rpm
Rated Torque: 4704 gf·cm
Rated Power: 3488 W

Motor Options6 variants

DC555 12V 3000 RPM

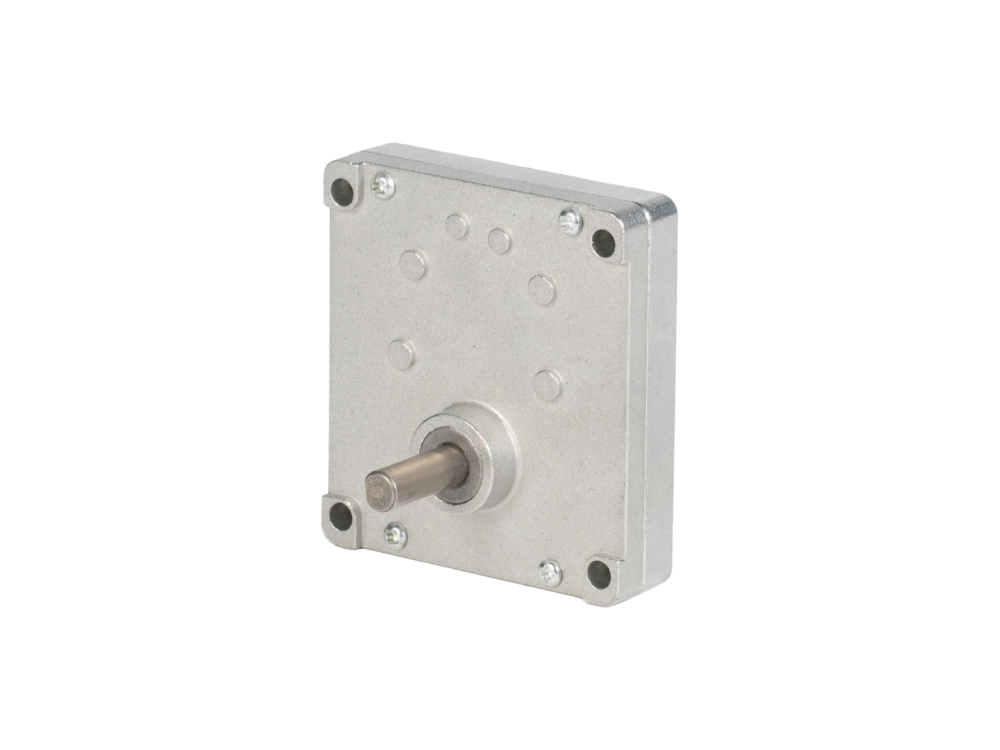

Gearbox Options11 variants

VF 36:1

Request customization

Model & Specification Comparison

Motors 6 options

55512300 DC555 12V 3000 RPM In stock 99

Gearboxes 11 options

VF3600 VF 36:1 In stock 99

Product specifications
Product Model	VF555123000-
Gearbox Weight	500 g
Rated Voltage	12 V
No Load Speed	83.333333 rpm
Rated Speed	72 rpm
No Load Current	180 mA
Rated Current	600 mA
Stall Current	3,100 mA
Rated Torque	4704 gf·cm
Stall Torque	43,362 gf·cm
Rated Power	3488 W
Max Efficiency	52.560 %
Gearbox Length	133.2 mm
Gear Ratio	36 :1
Number Of Gear Stages	3
Max Continuous Torque	10 gf·cm
Instantaneous Break Torque	30 gf·cm
Backlash	3 °
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	600 hours
