Gearboxes
Worm Gearboxes
WGM370

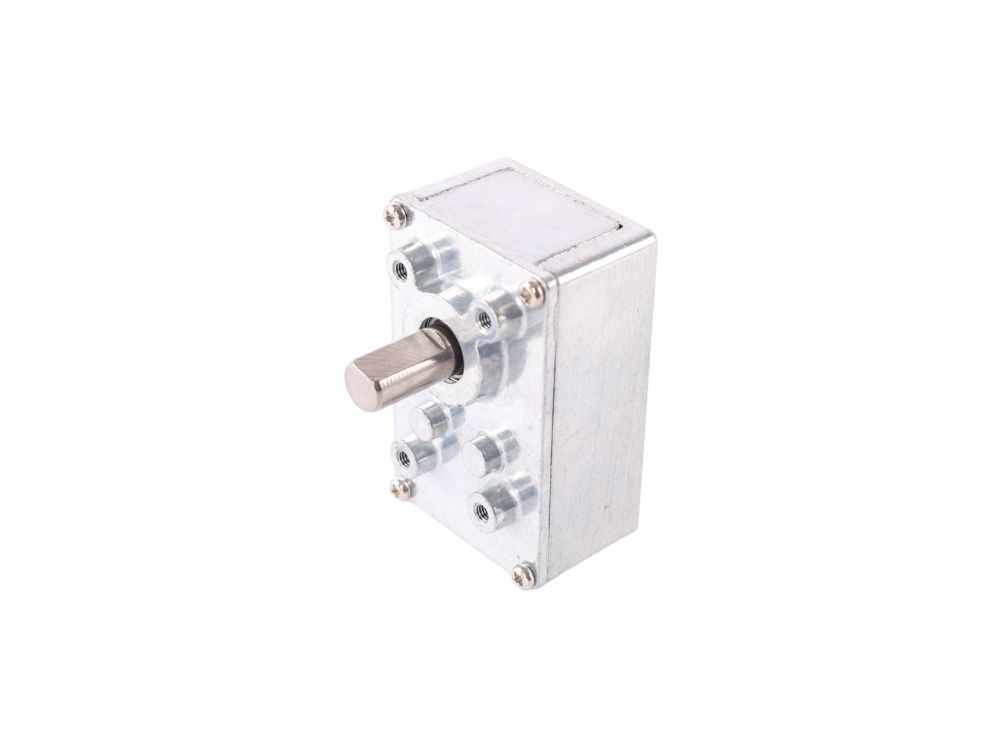

WGM370 Worm Gearbox
$6.99
MSRP
Key Data
Gear Ratio 123 :1
Max Continuous Torque 2 gf·cm
Breaking Torque 6 gf·cm
Gearbox Efficiency 70 %
Gearbox Weight 102 g
Gearbox Options6 variants
WGM370 123:1 Request customization
Model & Selection Model & Selection
Model & Specification Comparison
SKU Gearbox Type Gearbox Model Gear Ratio Number Of Gear Stages Gearbox Length Gearbox Width Gearbox Height Max Continuous Torque Breaking Torque Gearbox Efficiency Gearbox Weight Shaft Diameter Pinion Hole Diameter Operating Temperature Range Gearbox Housing Material Worm Material Number of Threads（Z） Gear Material Gear Design Output Shaft Bearing Lubricant In Gearbox Axial Play Radial Play Backlash Gear Module
WGM3701230 Worm Gearbox WGM370 123 :1 3 46 mm 32 mm 25 mm 2 gf·cm 6 gf·cm 70 % 102 g 6 mm 2 mm -30~65 C Zinc Alloy (Die casting) Brass / Plastic / Steel 1 Yes Powder Metallurgy (Fe) / Plastics Helical / Spur Sleeve Bearing Graphene oil mm 0.2 mm 0.1 ° 2 M WGM3702760 Worm Gearbox WGM370 276 :1 3 46 mm 32 mm 25 mm 2 gf·cm 6 gf·cm 70 % 102 g 6 mm 2 mm -30~65 C Zinc Alloy (Die casting) Brass / Plastic / Steel 1 Yes Powder Metallurgy (Fe) / Plastics Helical / Spur Sleeve Bearing Graphene oil mm 0.2 mm 0.1 ° 2 M WGM3705520 Worm Gearbox WGM370 552 :1 4 46 mm 32 mm 25 mm 5 gf·cm 15 gf·cm 60 % 105 g 6 mm 2 mm -30~65 C Zinc Alloy (Die casting) Brass / Plastic / Steel 1 Yes Powder Metallurgy (Fe) / Plastics Helical / Spur Sleeve Bearing Graphene oil mm 0.2 mm 0.1 ° 2 M WGM3708280 Worm Gearbox WGM370 828 :1 4 46 mm 32 mm 25 mm 5 gf·cm 15 gf·cm 60 % 105 g 6 mm 2 mm -30~65 C Zinc Alloy (Die casting) Brass / Plastic / Steel 1 Yes Powder Metallurgy (Fe) / Plastics Helical / Spur Sleeve Bearing Graphene oil mm 0.2 mm 0.1 ° 2 M WGM3701656 Worm Gearbox WGM370 1,656 :1 5 46 mm 32 mm 25 mm 10 gf·cm 30 gf·cm 50 % 107 g 6 mm 2 mm -30~65 C Zinc Alloy (Die casting) Brass / Plastic / Steel 1 Yes Powder Metallurgy (Fe) / Plastics Helical / Spur Sleeve Bearing Graphene oil mm 0.2 mm 0.1 ° 2 M WGM3702484 Worm Gearbox WGM370 2,484 :1 5 46 mm 32 mm 25 mm 10 gf·cm 30 gf·cm 50 % 107 g 6 mm 2 mm -30~65 C Zinc Alloy (Die casting) Brass / Plastic / Steel 1 Yes Powder Metallurgy (Fe) / Plastics Helical / Spur Sleeve Bearing Graphene oil mm 0.2 mm 0.1 ° 2 M
Technical Specifications Technical Specifications Gearbox Type Worm Gearbox Gearbox Model WGM370 Gear Ratio 123 :1 Number Of Gear Stages 3 Gearbox Length 46 mm Gearbox Width 32 mm Gearbox Height 25 mm Max Continuous Torque 2 gf·cm Breaking Torque 6 gf·cm Gearbox Efficiency 70 % Gearbox Weight 102 g Shaft Diameter 6 mm Pinion Hole Diameter 2 mm Operating Temperature Range -30~65 C Gearbox Housing Material Zinc Alloy (Die casting) Worm Material Brass / Plastic / Steel Number of Threads（Z） 1 Gear Material Yes Gear Design Powder Metallurgy (Fe) / Plastics Output Shaft Bearing Helical / Spur Lubricant In Gearbox Sleeve Bearing Axial Play Graphene oil mm Radial Play 0.2 mm Backlash 0.1 ° Gear Module 2 M
