Motors
DC Motors
DC050

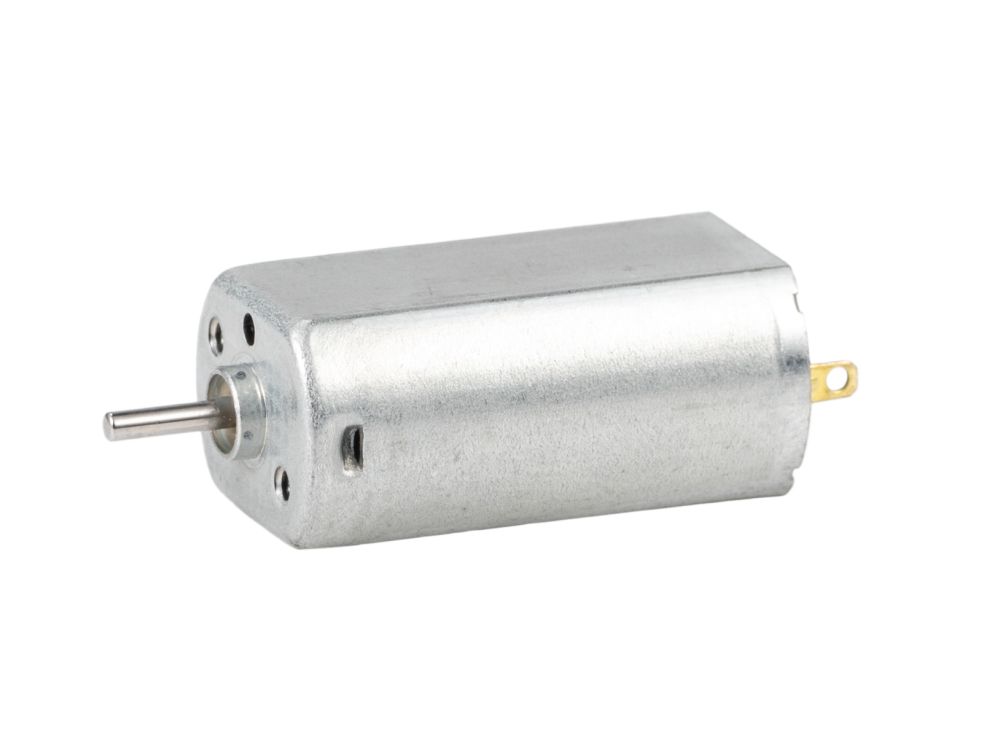

DC050 Brushed DC Motor
$2.49
MSRP
Key Data
Rated Voltage 12 V
Rated Torque 8 gf·cm
Rated Speed 7,000 rpm
Rated Current 140 mA
Rated Power 1 W
Electrical Options3 variants
DC050 12V 9000 RPM Compatible Gear Motors1 products
Explore compatible models
Request customization
Model & Selection Model & Selection
Model & Specification Comparison
SKU Motor Model Motor Type Rated Voltage No Load Speed Rated Speed No Load Current Rated Current Stall Current Rated Torque Stall Torque Rated Power Max Efficiency Motor Diameter Motor Length Motor Weight Shaft Diameter Shaft Configuration Connector Working Lifespan Operating Temperature Range Housing Material Direction Of Rotation Enameled Wire Material Magnet Material Carbon Brush Material Insulation Class Number Of Pole Pairs Gearbox
5012900 DC050-129000 Brushed DC Motor 12 V 9,000 rpm 7,000 rpm 45 mA 140 mA 500 mA 8 gf·cm 45 gf·cm 1 W 75 % 15.5 mm 26.9 mm 16 g 1.5 mm Single/Dual 2 150 hours -30 ~ 65 C Electrolytic zinc coated steel CW/CCW Enameled copper wire Ferrite Metal graphite brush UEW 2 PG16 5012120 DC050-1212000 Brushed DC Motor 12 V 12,000 rpm 9,600 rpm 55 mA 180 mA 750 mA 10 gf·cm 50 gf·cm 1 W 75 % 15.5 mm 26.9 mm 16 g 1.5 mm Single/Dual 2 150 hours -30 ~ 65 C Electrolytic zinc coated steel CW/CCW Enameled copper wire Ferrite Metal graphite brush UEW 2 PG16 5024130 DC050-2413000 Brushed DC Motor 24 V 13,000 rpm 10,000 rpm 45 mA 110 mA 400 mA 12 gf·cm 49 gf·cm 1 W 75 % 15.5 mm 26.9 mm 16 g 1.5 mm Single/Dual 2 150 hours -30 ~ 65 C Electrolytic zinc coated steel CW/CCW Enameled copper wire Ferrite Metal graphite brush UEW 2 PG16
Technical Specifications Technical Specifications Motor Model DC050-129000 Motor Type Brushed DC Motor Rated Voltage 12 V No Load Speed 9,000 rpm Rated Speed 7,000 rpm No Load Current 45 mA Rated Current 140 mA Stall Current 500 mA Rated Torque 8 gf·cm Stall Torque 45 gf·cm Rated Power 1 W Max Efficiency 75 % Motor Diameter 15.5 mm Motor Length 26.9 mm Motor Weight 16 g Shaft Diameter 1.5 mm Shaft Configuration Single/Dual Connector 2 Working Lifespan 150 hours Operating Temperature Range -30 ~ 65 C Housing Material Electrolytic zinc coated steel Direction Of Rotation CW/CCW Enameled Wire Material Enameled copper wire Magnet Material Ferrite Carbon Brush Material Metal graphite brush Insulation Class UEW Number Of Pole Pairs 2 Gearbox PG16
Downloads Downloads
Downloads
PDF
DC050-2D
PDF · 81.5KB
Download
STEP
DC050-3D
STEP · 195.6KB
Download
