Motors
DC Motors
DC180

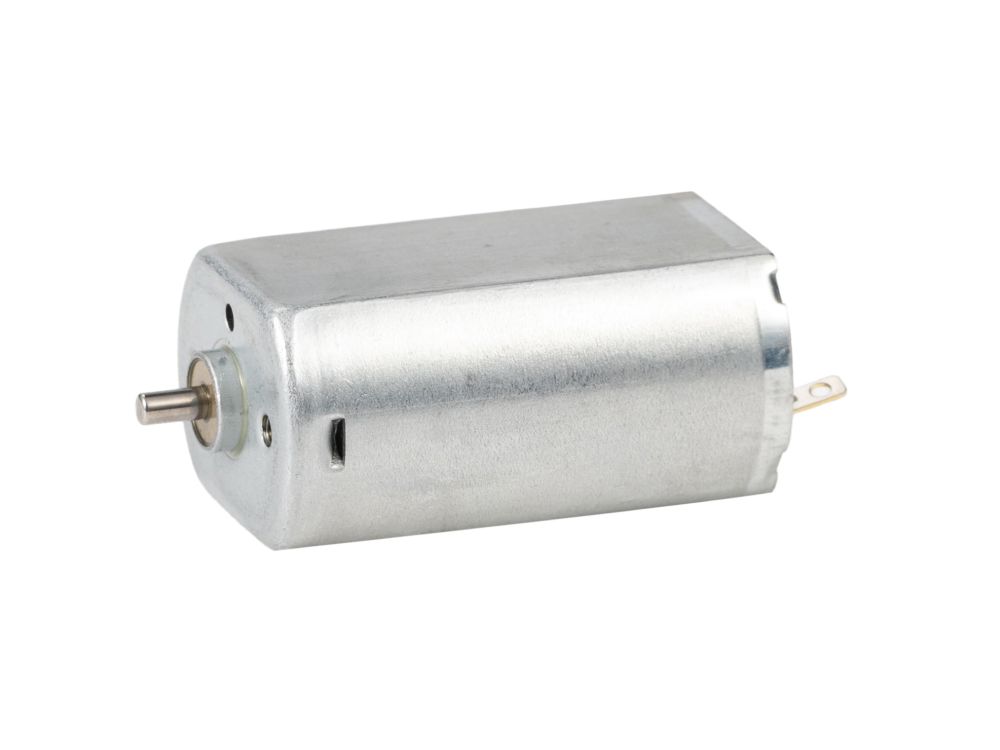

DC180 Brushed DC Motor
$2.49
MSRP
Key Data
Rated Voltage 12 V
Rated Torque 24 gf·cm
Rated Speed 7,200 rpm
Rated Current 300 mA
Rated Power 2 W
Electrical Options4 variants
DC180 12V 9000 RPM Compatible Gear Motors2 products
Explore compatible models
Request customization
Model & Selection Model & Selection
Model & Specification Comparison
SKU Motor Model Motor Type Rated Voltage No Load Speed Rated Speed No Load Current Rated Current Stall Current Rated Torque Stall Torque Rated Power Max Efficiency Motor Diameter Motor Length Motor Weight Shaft Diameter Shaft Configuration Connector Working Lifespan Operating Temperature Range Housing Material Direction Of Rotation Enameled Wire Material Magnet Material Carbon Brush Material Insulation Class Number Of Pole Pairs Gearbox
18012900 DC180-129000 Brushed DC Motor 12 V 9,000 rpm 7,200 rpm 50 mA 300 mA 950 mA 24 gf·cm 120 gf·cm 2 W 72 % 20.4 mm 32.1 mm 31 g 2 mm Single/Dual 2 150 hours -30 ~ 65 C Electrolytic zinc coated steel CW/CCW Enameled copper wire Ferrite Metal graphite brush UEW 2 PG22 18012150 DC180-1215000 Brushed DC Motor 12 V 15,000 rpm 12,494 rpm 135 mA 600 mA 3,000 mA 35 gf·cm 215 gf·cm 5 W 71 % 20.4 mm 32.1 mm 31 g 2 mm Single/Dual 2 150 hours -30 ~ 65 C Electrolytic zinc coated steel CW/CCW Enameled copper wire Ferrite Metal graphite brush UEW 2 PG22 18024900 DC180-249000 Brushed DC Motor 24 V 9,000 rpm 7,416 rpm 25 mA 110 mA 550 mA 23 gf·cm 130 gf·cm 2 W 71 % 20.4 mm 32.1 mm 31 g 2 mm Single/Dual 2 150 hours -30 ~ 65 C Electrolytic zinc coated steel CW/CCW Enameled copper wire Ferrite Metal graphite brush UEW 2 PG22 18024150 DC180-2415000 Brushed DC Motor 24 V 15,000 rpm 12,600 rpm 55 mA 290 mA 1,600 mA 36 gf·cm 220 gf·cm 4 W 71 % 20.4 mm 32.1 mm 31 g 2 mm Single/Dual 2 150 hours -30 ~ 65 C Electrolytic zinc coated steel CW/CCW Enameled copper wire Ferrite Metal graphite brush UEW 2 PG22
Technical Specifications Technical Specifications Motor Model DC180-129000 Motor Type Brushed DC Motor Rated Voltage 12 V No Load Speed 9,000 rpm Rated Speed 7,200 rpm No Load Current 50 mA Rated Current 300 mA Stall Current 950 mA Rated Torque 24 gf·cm Stall Torque 120 gf·cm Rated Power 2 W Max Efficiency 72 % Motor Diameter 20.4 mm Motor Length 32.1 mm Motor Weight 31 g Shaft Diameter 2 mm Shaft Configuration Single/Dual Connector 2 Working Lifespan 150 hours Operating Temperature Range -30 ~ 65 C Housing Material Electrolytic zinc coated steel Direction Of Rotation CW/CCW Enameled Wire Material Enameled copper wire Magnet Material Ferrite Carbon Brush Material Metal graphite brush Insulation Class UEW Number Of Pole Pairs 2 Gearbox PG22
Downloads Downloads
Downloads
PDF
DC180-2D
PDF · 90.7KB
Download
STEP
DC180-3D
STEP · 183.6KB
Download
