Gearboxes
Planetary Gearboxes
PG16

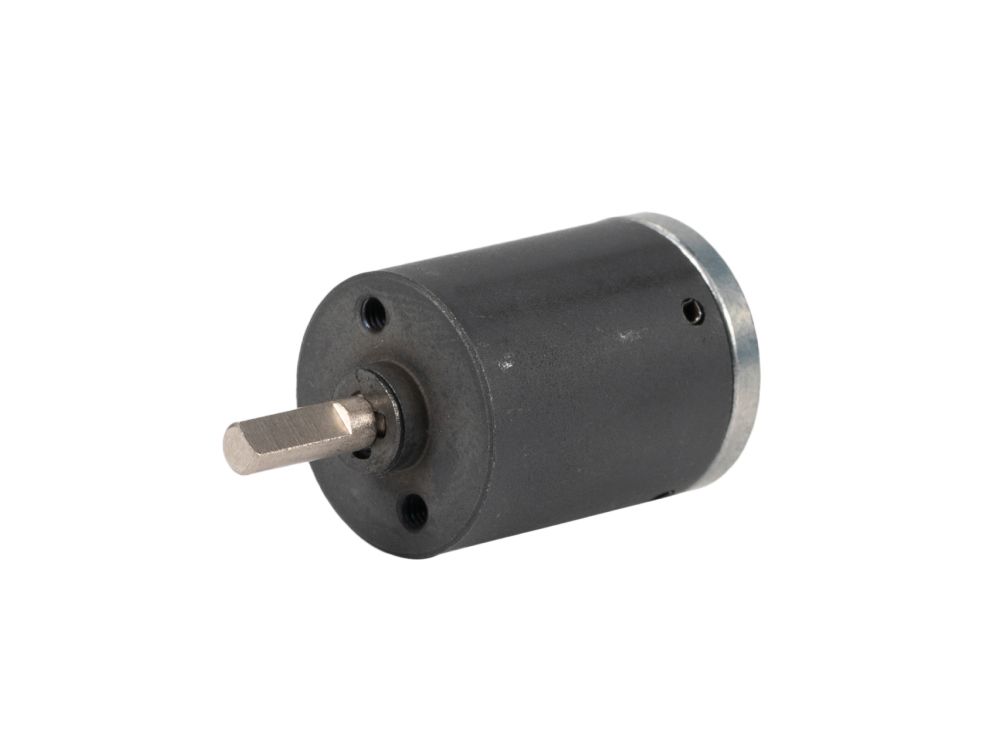

PG16 Planetary Gearbox
$17.99
MSRP
Key Data
Gear Ratio 4 :1
Max Continuous Torque 1 gf·cm
Breaking Torque 3 gf·cm
Gearbox Efficiency 90 %
Gearbox Weight 14 g
Gearbox Options12 variants
PG16 4:1 Compatible Gear Motors1 products
Explore compatible models
Request customization
Model & Selection Model & Selection
Model & Specification Comparison
SKU Gearbox Type Gearbox Model Gear Ratio Number Of Gear Stages Gearbox Diameter Gearbox Length Max Continuous Torque Breaking Torque Gearbox Efficiency Gearbox Weight Shaft Diameter Pinion Hole Diameter Operating Temperature Range Gearbox Housing Material Gear Material Gear Design Output Shaft Bearing Lubricant In Gearbox Axial Play Radial Play Backlash Gear Module
PG164000 Planetary Gear Motor PG16-4K 4 :1 1 16 mm 13.7 mm 1 gf·cm 3 gf·cm 90 % 14 g 3 mm 1.48 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Helical Gear Dual Ball bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.3 M PG164750 Planetary Gear Motor PG16-4.75K 4.75 :1 1 16 mm 13.7 mm 1 gf·cm 3 gf·cm 90 % 14 g 3 mm 1.48 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Helical Gear Dual Ball bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.3 M PG161230 Planetary Gear Motor PG16-12.3K 12.3 :1 2 16 mm 17.3 mm 1.5 gf·cm 4.5 gf·cm 81 % 17 g 3 mm 1.48 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Helical Gear Dual Ball bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.3 M PG161600 Planetary Gear Motor PG16-16K 16 :1 2 16 mm 17.3 mm 1.5 gf·cm 4.5 gf·cm 81 % 17 g 3 mm 1.48 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Helical Gear Dual Ball bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.3 M PG161900 Planetary Gear Motor PG16-19K 19 :1 2 16 mm 17.3 mm 1.5 gf·cm 4.5 gf·cm 81 % 17 g 3 mm 1.48 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Helical Gear Dual Ball bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.3 M PG164280 Planetary Gear Motor PG16-42.8K 42.8 :1 3 16 mm 20.9 mm 4 gf·cm 12 gf·cm 72 % 21 g 3 mm 1.48 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Helical Gear Dual Ball bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.3 M PG166400 Planetary Gear Motor PG16-64K 64 :1 3 16 mm 20.9 mm 4 gf·cm 12 gf·cm 72 % 21 g 3 mm 1.48 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Helical Gear Dual Ball bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.3 M PG167600 Planetary Gear Motor PG16-76K 76 :1 3 16 mm 20.9 mm 4 gf·cm 12 gf·cm 72 % 21 g 3 mm 1.48 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Helical Gear Dual Ball bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.3 M PG161500 Planetary Gear Motor PG16-150K 150 :1 4 16 mm 24.5 mm 4 gf·cm 12 gf·cm 65 % 25 g 3 mm 1.48 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Helical Gear Dual Ball bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.3 M PG162560 Planetary Gear Motor PG16-256K 256 :1 4 16 mm 24.5 mm 4 gf·cm 12 gf·cm 65 % 25 g 3 mm 1.48 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Helical Gear Dual Ball bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.3 M PG167120 Planetary Gear Motor PG16-712K 712 :1 5 16 mm 28.1 mm 4 gf·cm 12 gf·cm 50 % 27 g 3 mm 1.48 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Helical Gear Dual Ball bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.3 M PG161024 Planetary Gear Motor PG16-1024K 1,024 :1 5 16 mm 28.1 mm 4 gf·cm 12 gf·cm 50 % 27 g 3 mm 1.48 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Helical Gear Dual Ball bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.3 M
Technical Specifications Technical Specifications Gearbox Type Planetary Gear Motor Gearbox Model PG16-4K Gear Ratio 4 :1 Number Of Gear Stages 1 Gearbox Diameter 16 mm Gearbox Length 13.7 mm Max Continuous Torque 1 gf·cm Breaking Torque 3 gf·cm Gearbox Efficiency 90 % Gearbox Weight 14 g Shaft Diameter 3 mm Pinion Hole Diameter 1.48 mm Operating Temperature Range -30 ~ 65 C Gearbox Housing Material Powder Metallurgy (Fe) Gear Material Powder Metallurgy (Fe) / Plastics Gear Design Helical Gear Output Shaft Bearing Dual Ball bearing Lubricant In Gearbox Graphene oil Axial Play ≤ 0.2 mm Radial Play ≤ 0.1 mm Backlash ≤ 1.5 ° Gear Module 0.3 M
